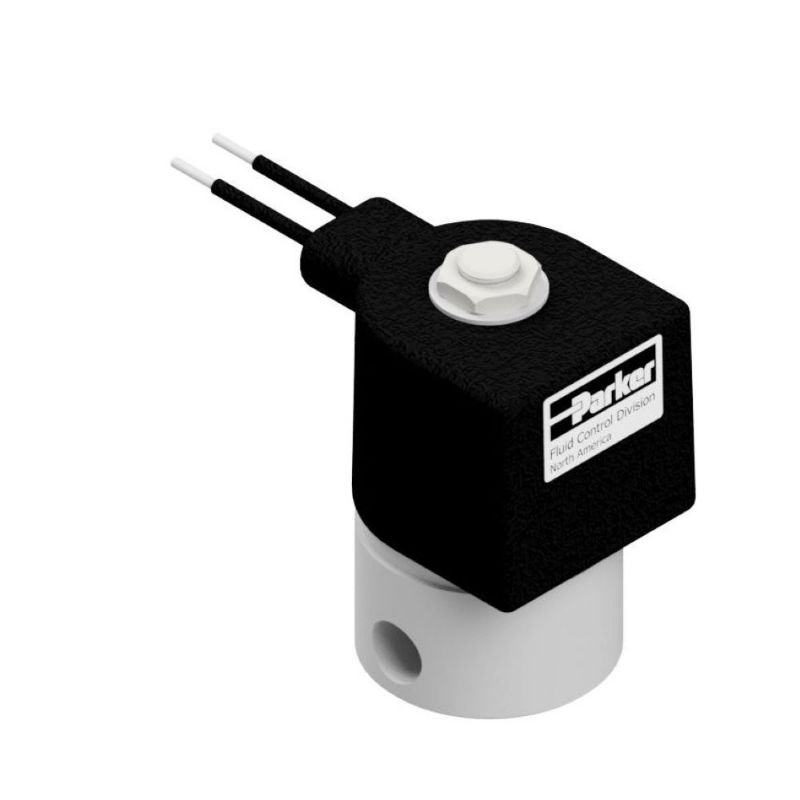

Parker 71216SN1BL00N0L322C2 - 6 Family - Direct Acting High Pressure Valves

These unique needle-in-seat high pressure valves direct-acting valves deliver long life at high pressures thanks to robust fundamentals and technopolymer sealing surfaces. These valves must be mounted upright; with solenoid coils vertical and upright

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71216SN1BL00N0L322C2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Fluid Control Division
Body Material	Stainless Steel	Input Voltage	24.0 VDC
Actuation Type	Direct Acting	Media	General Purpose
Function	Normally Closed	Minimum Pressure Differential	0.0 psi
Insulation Class	Class H	Specifications Met	N/A
Valve Configuration	2 Way	Ingress Protection Rating	N/A
Maximum Ambient Temperature	77.0 °F	Port Size	1/8 inch
Preventive Maintenance Kit	n/a	Orifice Size	1/32 inch
Coil Type	L322C2	Seal Material	NYLON
Power Consumption	22.0 W	Maximum Fluid Temperature	185.0 °F
Maximum Pressure Differential	3000.0 psi	Installation	IOM 7206
Main Flow Coefficient	0.021 Cv	Port Type	NPT
Body Material	Stainless Steel	Media	General Purpose
Function	Normally Closed	Input Voltage	24.0
Insulation Class	Class H	Specifications Met	N/A
Valve Configuration	2 Way	Ingress Protection Rating	N/A
Maximum Ambient Temperature	77.0	Minimum Pressure Differential	0.0
Coil Type	L322C2	Seal Material	NYLON
Port Size	1/8	Installation	IOM 7206
Orifice Size	1/32	Actuation Type	Direct Acting
Power Consumption	22.0	Main Flow Coefficient	0.021
Maximum Fluid Temperature	185.0	Preventive Maintenance Kit	N/A
Maximum Pressure Differential	3000.0
