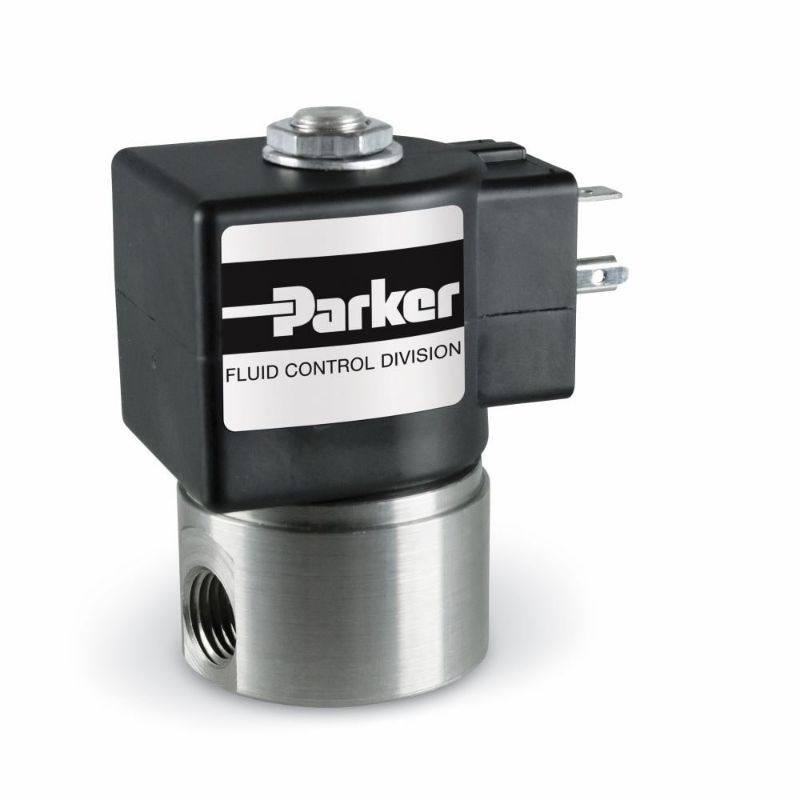

Parker 71215SN21N00N0D300C1 - Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71215SN21N00N0D300C1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Port Size	1/4
Division	Fluid Control Division	Media	General Purpose for Air
Function	Normally Closed (NC)	Valve Type	2-Way
Body Material	Stainless Steel	Input Voltage	12.0
Seal Material	NBR	Actuation Type	Direct Acting
Orifice 2 Size	n/a	Number of Ports	2
Flow Coefficient 2	n/a	Coil Specifications Met	NEMA 4X
Minimum Fluid Temperature	0	Minimum Pressure Differential	0
Orifice 1 Size	5/16	Flow Coefficient 1	1.1
Maximum Fluid Temperature	185	Coil Type	DIN Form A
Product Series	7000 Series	Power Consumption	22 W (DC)
Maximum Pressure Differential	10.0 psi (DC)	Voltage (V)	12 VDC
Seal Material	NBR	Flow Factor 1 (Cv)	1.1
Orifice 1 Size (inch)	5/16	Coil Type	DIN Form A
Power (Watts)	22 Watts (DC)	Body Material	Stainless
