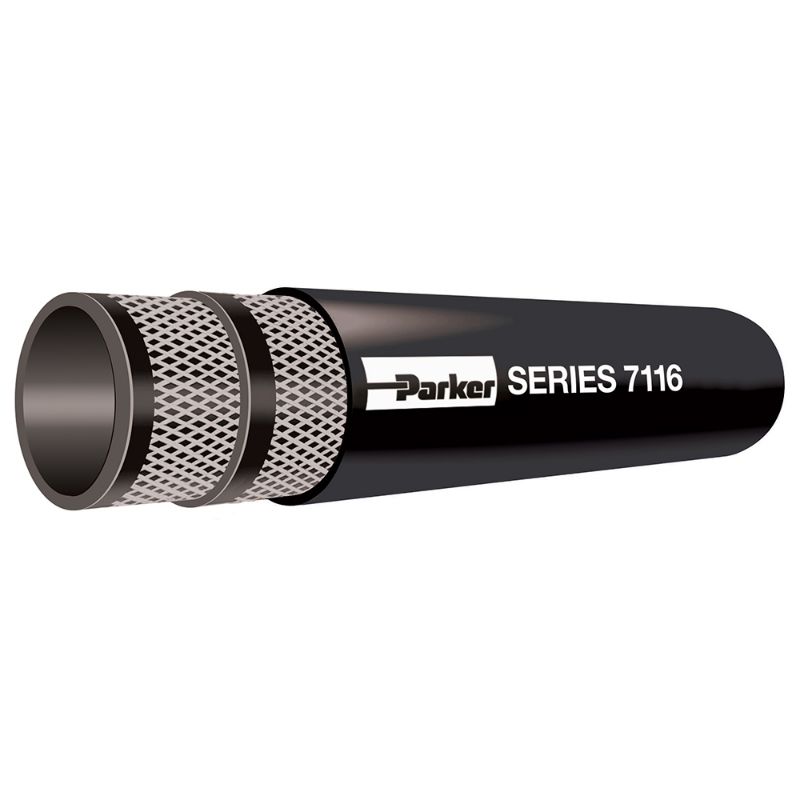

Parker 7116M-750 - SOFT-FLEX™ Diesel Exhaust Fluid (DEF) Dispenser Hose, Series 7116M

Soft-Flex Diesel Exhaust Fluid (DEF) Dispenser Hose is designed to transfer diesel exhaust fluid from powered dispensers to 212°F and 150 psi, Series 7116M

AFP Availability:	Quote Required
Partner Available:	1188 In Stock

Brand Parker

Part No. 7116M-750

$4.81/each

Products specifications

Attribute name	Attribute value
Application	Specialty	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Minimum Operating Temperature	-40 °C	Design Factor	4:1
Weight	0.34 lb/ft	Maximum Operating Pressure	10.3 bar
Cover Structure	Smooth	Specifications Met	n/a
Minimum Bend Radius	152 mm	Length per Package	400 ft
Hose Reinforcement Material	4 Plies of Textile	Cover Color	Black
Division	Hose Products Division	Inside Diameter	19.1 mm
Outside Diameter	29.4 mm	Compatible Fitting	HBL-C Series
Package Type	Reel	Hose Inner Tube Material	Black
Media	Chemicals (Urea) - Check your fluid compatibility with our catalogue chart.	Maximum Operating Temperature	212 °F
Hose I.D. (inch)	3/4	Maximum Working Pressure (psi)	150

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
