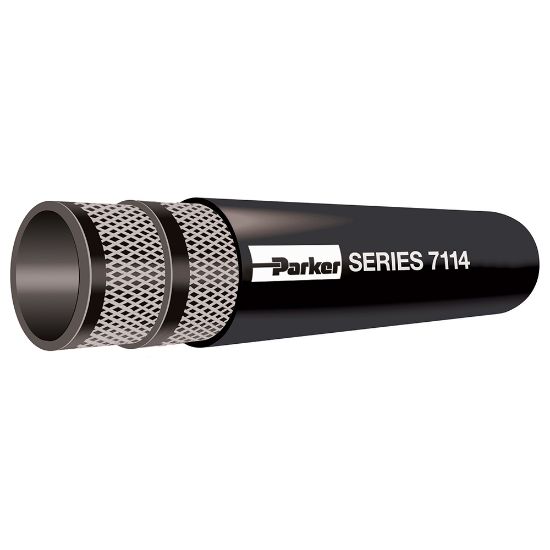

Parker 7114-100154A - SOFT-FLEX™ 2000 Softwall Gasoline Dispenser Hose, Series 7114

Soft-Flex 2000 Softwall Gasoline Dispenser Hose is designed to transfer refined fuels from powered dispensers to 180°F and 50 psi, Series 7114

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7114-100154A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	50 psi	Minimum Bend Radius	8 inch
Cover Color	Black	Inside Diameter	1 inch
Cover Structure	Smooth	Package Type	Reel
Cover Material	Chloroprene Rubber (CR)	Length per Package	250 ft
Maximum Operating Temperature	82 °C	Media	Fuels (Biodiesel to B20 in dedicated service)
Weight	0.47 lb	Application	Petroleum Transfer
Outside Diameter	35.3 mm	Specifications Met	UL 330/ULC (factory assemblies)
Hose Inner Tube Material	Nitrile Butadiene Rubber (NBR)	Hose Reinforcement Material	4 Plies of Textile with Static Wire
Maximum Working Pressure (psi)	50	Hose I.D. (inch)	1
