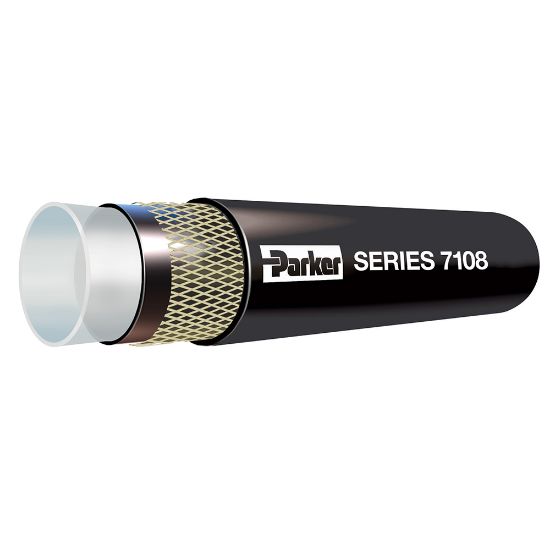

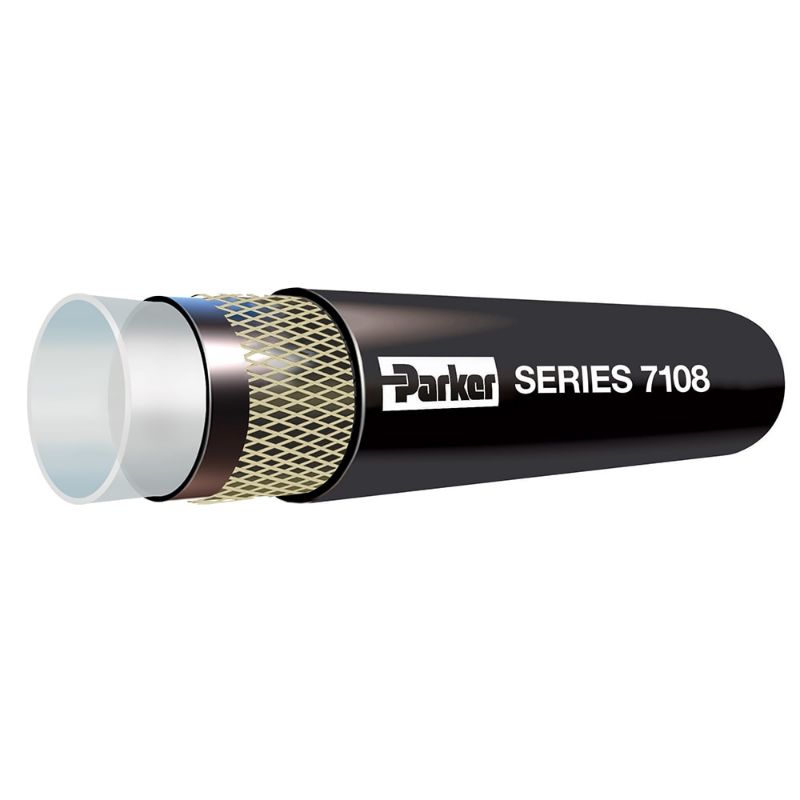

Parker 7108-501 - Paint Fluid Hose, Series 7108

Paint fluid hose is designed for transfer of high aromatic content products such as ketone solvents, lacquers, paint thinners, oil-based and water-based paints and many common chemicals used in applications to 200°F and 750 psi, Series 7108

Availability:	Quote Required
Partner Available:	188 In Stock

Brand Parker

Part No. 7108-501

$6.27

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Cover Structure	Smooth
Maximum Operating Pressure	750 psi	Outside Diameter	22.2 mm
Weight (per unit of measure)	0,36 kg/m	Hose Inner Tube Material	Translucent
Package Type	Reel	Media	Chemicals (Thinners)
Application	Chemical Transfer	Tube Material	Translucent nylon
Specifications Met	N/A	Hose Reinforcement Material	2 Plies of Aramid
Hose Outside Diameter	22,2 mm	Minimum Bend Radius	5 inch
Length	Random lengths on reels. 182.88 m max., 121.9 m min, with 15.24 m min. length, max. 3 pcs. m	Minimum Operating Temperature	-18 °C
Cover Material	Chloroprene Rubber (CR)	Cover Color	Black
Maximum Operating Temperature	93 °C	Inside Diameter	12.7 mm
Division	Hose Products Division	Length per Package	500 ft
Compatible Fitting	43 Series	Weight	0.25 lb/ft
Hose Reinforcement Material & Structure	Multiple aramid plies	Hose I.D. (mm)	12,7
Maximum Working Pressure (Bar)	51,7	Hose I.D. (inch)	1/2
Maximum Working Pressure (psi)	750
