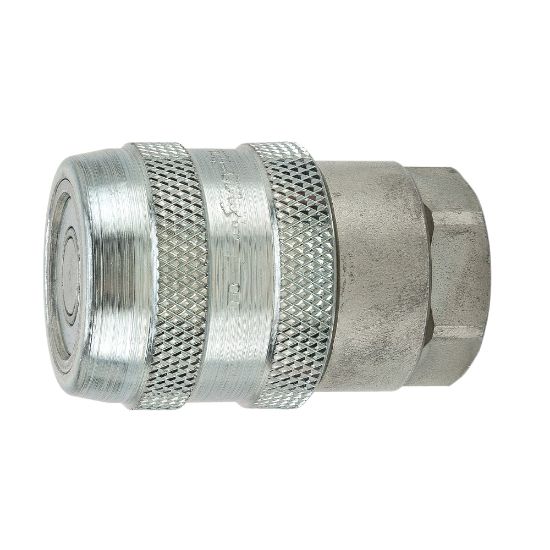

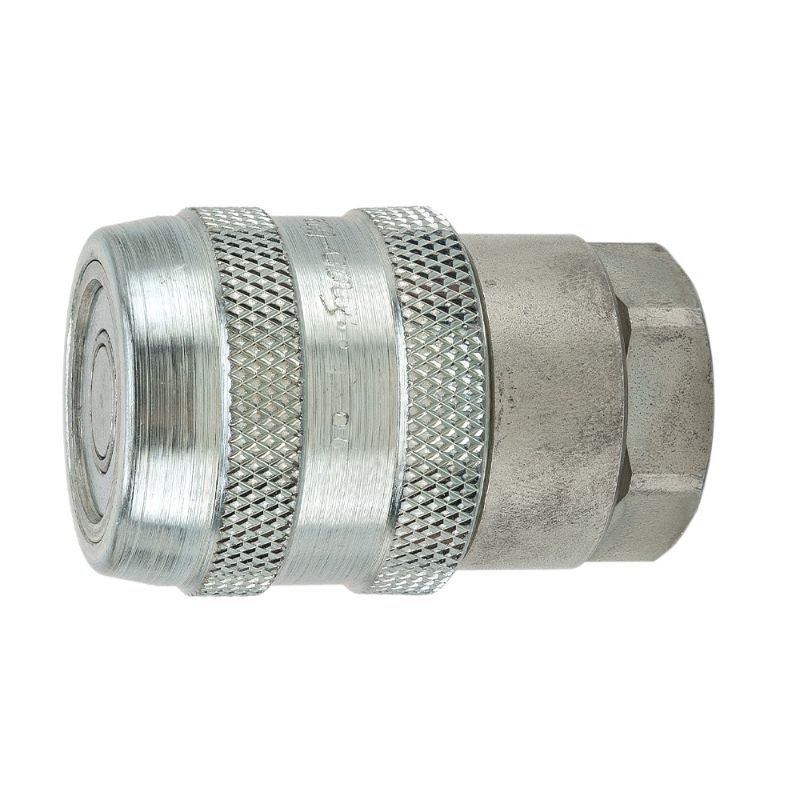

Parker 71-1C32-24F - Flat Face, High Pressure, Hydraulic Quick Couplings - 71 Series

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71-1C32-24F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Application	Hydraulics
Valve Type	Non-spill	Hex Size	3.38 inch
Product Type	Push to Connect	Dimensional Weight	1.7249784172661868 lb
Body Material	Steel	Body Material	Steel
Coupling Half	Female Coupler	Connection Type	Female NPT
Body Size (inch)	2	Connection Thread Size (inch)	1 1/2 - 11 1/2
Maximum Operating Pressure	5000

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
