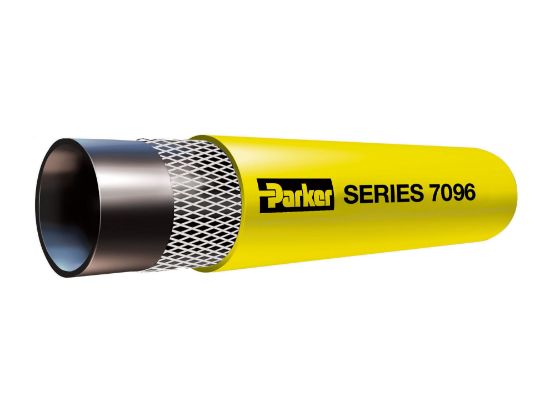

Parker 7096-75304 - GST® II General Purpose Air & Water Hose

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7096-75304

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Hose Products Division
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	212 °F
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Application	Air
Cover Color	Yellow	Cover Structure	Smooth
Inside Diameter	19.1 mm	Weight	0.37 lb/ft
Hose Reinforcement Material	4 Plies of Textile	Compatible Fitting	HY Series
Minimum Bend Radius	152.4 mm	Package Type	Carton
Maximum Operating Pressure	20.7 bar	Outside Diameter	1.160 inch
Specifications Met	ARPM Class C Tube	Hose Inner Tube Material	Black (ARPM Class C Oil Resistance)
Tube Material	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)	Color	Yellow
Hose I.D. (inch)	3/4	Standard Pack Qty (ft)	400
Maximum Working Pressure (psi)	300	Color	Yellow
UOM	FT	Inner Diameter	0.75 Inch
Pkg Qty	400	Mating Fitting Series	HY
Working Pressure	300 PSI (20 bar)	Package Type	Reel
Pkg Qty/UOM	400 FT	Inch/Metric	Inch
Trade Name	GST® II	Parker Division	Hose Products
Parker Group	Fluid Connector	Color	Yellow
Hose Pressure Range	Low	Hose Category	Air & Multipurpose
Series	7096	Inner Diameter Inch/mm	Inch
Mating End Fitting Series	HY	Inner Diameter	0.75 Inch

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
