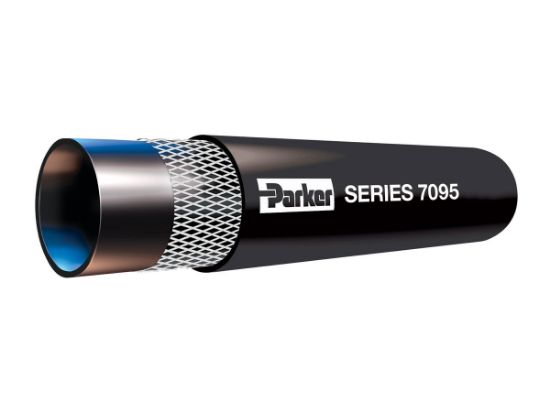

Parker 7095-50250 - MPT® II NONCONDUCTIVE MULTIPURPOSE OIL RESISTANT HOSE

MPT II Nonconductive Multipurpose Oil Resistant Hose is designed for transfer of air, mild chemicals, oil and water in applications to 212°F and 300 psi

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7095-50250

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Hose Products Division
Maximum Operating Pressure	250	Specifications Met	N/A
Size	-8	Weight	0.33
Inside Diameter	1/2	Minimum Operating Temperature	-20
Application	Air	Minimum Bend Radius	5
Hose Inner Tube Material	Black	Outside Diameter	0.840
Hose Reinforcement Material	Mutiple Plies of Textile	Cover Material	Chloroprene Rubber (CR)
Nominal Hose Inside Diameter	15	Maximum Operating Temperature	100 °C (Other Media)
Hose I.D. (inch)	1/2	Color	Black
Maximum Working Pressure (psi)	250	Packaging	Reels
Color	Black	Pkg Qty	550
UOM	FT	Pkg Qty/UOM	550 FT
Mating Fitting Series	HY	Working Pressure	250 PSI (17 bar)
Package Type	Reel	Inner Diameter	0.5 Inch
Series	7095	Inch/Metric	Inch
Parker Group	Fluid Connector	Parker Division	Hose Products
Inner Diameter	0.5 Inch	Hose Pressure Range	Low
Color	Black	Mating End Fitting Series	HY
Trade Name	MPT® II	Inner Diameter Inch/mm	Inch
Hose Category	Multipurpose Oil Resistant

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
