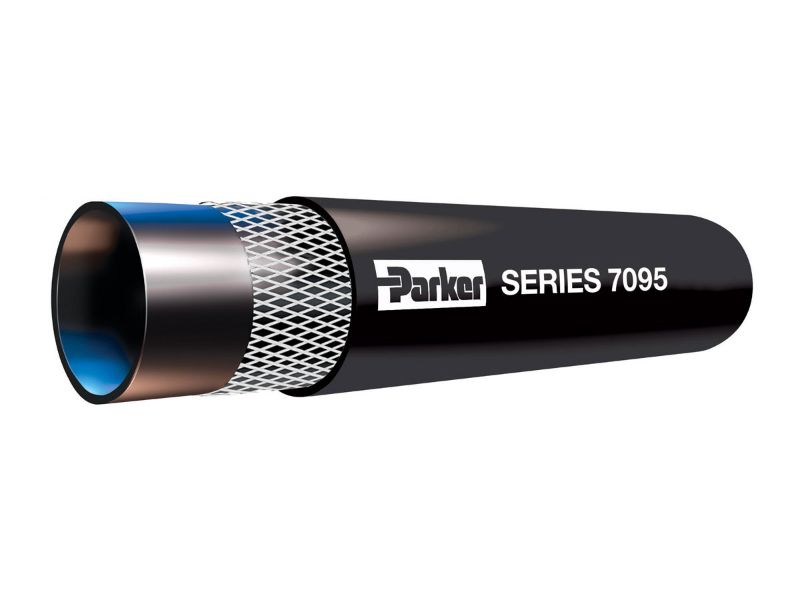

Parker 7095-100200 - MPT® II NONCONDUCTIVE MULTIPURPOSE OIL RESISTANT HOSE

MPT II Nonconductive Multipurpose Oil Resistant Hose is designed for transfer of air, mild chemicals, oil and water in applications to 212°F and 300 psi

AFP Availability:	Quote Required
Partner Available:	32 In Stock

Brand Parker

Part No. 7095-100200

$5.97/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Specifications Met	n/a
Minimum Bend Radius	254 mm	Application	Non-conductive
Cover Material	Chloroprene Rubber (CR)	Nominal Hose Inside Diameter	25 mm
Minimum Operating Temperature	-20 °F	Maximum Operating Pressure	13.8 bar
Outside Diameter	35.7 mm	Hose Reinforcement Material	Mutiple Plies of Textile
Weight	0.49 lb/ft	Division	Hose Products Division
Maximum Operating Temperature	212 °F (Other Media)	Inside Diameter	1 inch
Hose Inner Tube Material	Black	Size	-16
Media	Water	Color	Black
Hose I.D. (inch)	1	Maximum Working Pressure (psi)	200
Packaging	Reels	Pkg Qty/UOM	300 FT
Pkg Qty	300	UOM	FT
Mating Fitting Series	HY	Color	Black
Package Type	Reel	Working Pressure	200 PSI (14 bar)
Inner Diameter	1 Inch	Color	Black
Parker Group	Fluid Connector	Parker Division	Hose Products
Trade Name	MPT® II	Inner Diameter Inch/mm	Inch
Hose Category	Multipurpose Oil Resistant	Hose Pressure Range	Low
Inch/Metric	Inch	Mating End Fitting Series	HY
Series	7095	Inner Diameter	1 Inch

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
