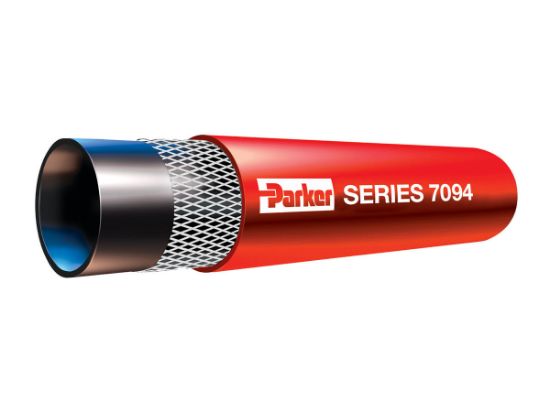

Parker 7094-125204 - MPT® II NONCONDUCTIVE MULTIPURPOSE OIL RESISTANT HOSE

MPT II Nonconductive Multipurpose Oil Resistant Hose is designed for transfer of air, mild chemicals, oil and water in applications to 212°F and 300 psi

AFP Availability:	Quote Required
Partner Available:	945 In Stock

Brand Parker

Part No. 7094-125204

$12.94/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Pressure	13.8 bar
Outside Diameter	1.780 inch	Hose Reinforcement Material	Mutiple Plies of Textile
Weight	1.22 kg/m	Division	Hose Products Division
Maximum Operating Temperature	70 °C (Air)	Inside Diameter	1-1/4 inch
Hose Inner Tube Material	ARPM Class A Oil Resistance	Media	Air
Size	-20	Cover Material	Chloroprene Rubber (CR)
Nominal Hose Inside Diameter	32 mm	Specifications Met	n/a
Minimum Bend Radius	228.6 mm	Minimum Operating Temperature	-20 °F
Application	Non-conductive	Color	Red
Hose I.D. (inch)	1-1/4	Maximum Working Pressure (psi)	200
Packaging	Reels	UOM	FT
Mating Fitting Series	HY	Package Type	Reel
Color	Red	Working Pressure	200 PSI (14 bar)
Inner Diameter	1.25 Inch	Pkg Qty	250
Pkg Qty/UOM	250 FT	Hose Category	Multipurpose Oil Resistant
Trade Name	MPT® II	Inner Diameter Inch/mm	Inch
Color	Red	Hose Pressure Range	Low
Inner Diameter	1.25 Inch	Inch/Metric	Inch
Mating End Fitting Series	HY	Series	7094
Parker Division	Hose Products	Parker Group	Fluid Connector

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
