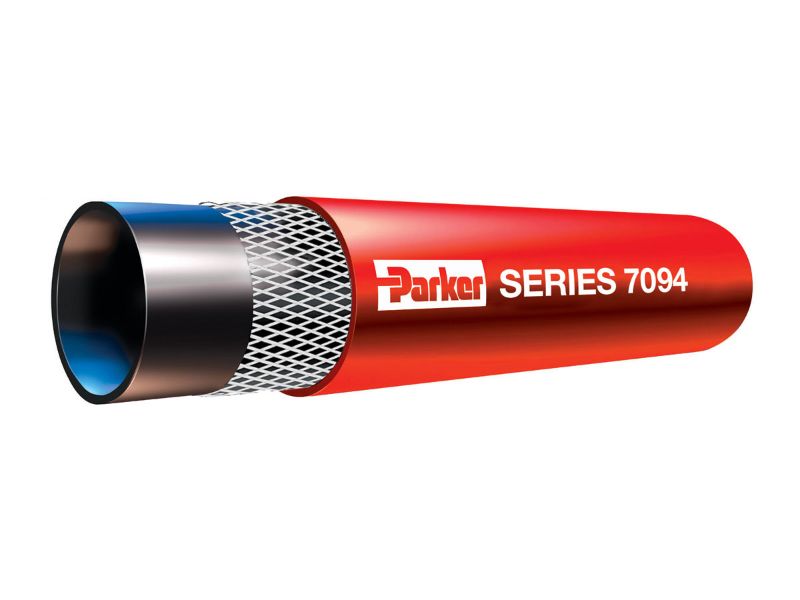

Picture of Parker 7094-100200 - MPT® II NONCONDUCTIVE MULTIPURPOSE OIL RESISTANT HOSE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 7094-100200 - MPT® II NONCONDUCTIVE MULTIPURPOSE OIL RESISTANT HOSE

MPT II Nonconductive Multipurpose Oil Resistant Hose is designed for transfer of air, mild chemicals, oil and water in applications to 212°F and 300 psi
AFP Availability:
19 In Stock
West Knoxville, TN19
Partner Available:709 In Stock
Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
Brand Parker
Part No. 7094-100200
$5.97/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTOutside Diameter1.410 inch
Inside Diameter25.4 mmMediaMild Chemicals - Check your fluid compatibility with our catalogue chart.
Size-16Maximum Operating Temperature212 °F (Other Media)
DivisionHose Products DivisionApplicationAir
Minimum Operating Temperature-29 °CHose Inner Tube MaterialARPM Class A Oil Resistance
Weight0.49 lb/ftMaximum Operating Pressure1.4 MPa
Nominal Hose Inside Diameter25 mmCover MaterialChloroprene Rubber (CR)
Minimum Bend Radius254 mmSpecifications Metn/a
Hose Reinforcement MaterialMutiple Plies of TextileColorRed
Hose I.D. (inch)1Maximum Working Pressure (psi)200
PackagingReelsPackage TypeReel
ColorRedInner Diameter1 Inch
Pkg Qty300Working Pressure200 PSI (14 bar)
Pkg Qty/UOM300 FTUOMFT
Mating Fitting SeriesHYMating End Fitting SeriesHY
ColorRedHose CategoryMultipurpose Oil Resistant
Inner Diameter Inch/mmInchInch/MetricInch
Inner Diameter1 InchSeries7094
Parker GroupFluid ConnectorParker DivisionHose Products
Hose Pressure RangeLowTrade NameMPT® II
