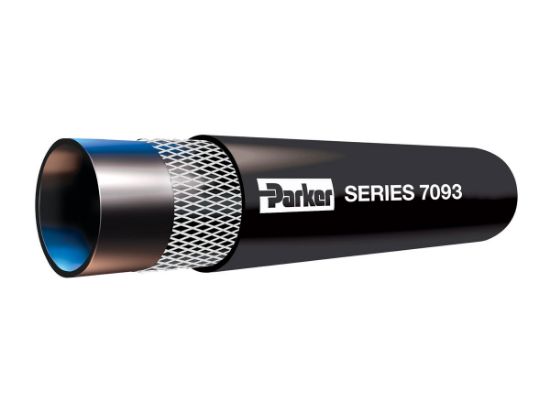

Parker 7093-2530050 - GST® II General Purpose Air & Water Hose

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7093-2530050

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Hose Products Division
Minimum Operating Temperature	-40	Maximum Operating Temperature	212
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Maximum Operating Pressure	300
Application	Air	Cover Color	Black
Cover Structure	Smooth	Hose Reinforcement Material	2 Plies of Textile
Inside Diameter	1/4	Weight	0.12
Compatible Fitting	HY Series	Package Type	Carton
Minimum Bend Radius	3.3	Specifications Met	ARPM Class C Tube
Outside Diameter	0.550	Hose Inner Tube Material	ARPM Class C Oil Resistance (ARPM Class C Oil Resistance)
Tube Material	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)	Hose I.D. (inch)	1/4
Standard Pack Qty (ft)	50	Color	Black
Maximum Working Pressure (psi)	300	Working Pressure	300 PSI (20 bar)
Mating Fitting Series	HY	UOM	FT
Package Type	Carton	Color	Black
Inner Diameter	0.25 Inch	Pkg Qty/UOM	50 FT
Pkg Qty	50	Inner Diameter	0.25 Inch
Hose Pressure Range	Low	Hose Category	Air & Multipurpose
Trade Name	GST® II	Mating End Fitting Series	HY
Inner Diameter Inch/mm	Inch	Inch/Metric	Inch
Color	Black	Parker Group	Fluid Connector
Series	7093	Parker Division	Hose Products

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
