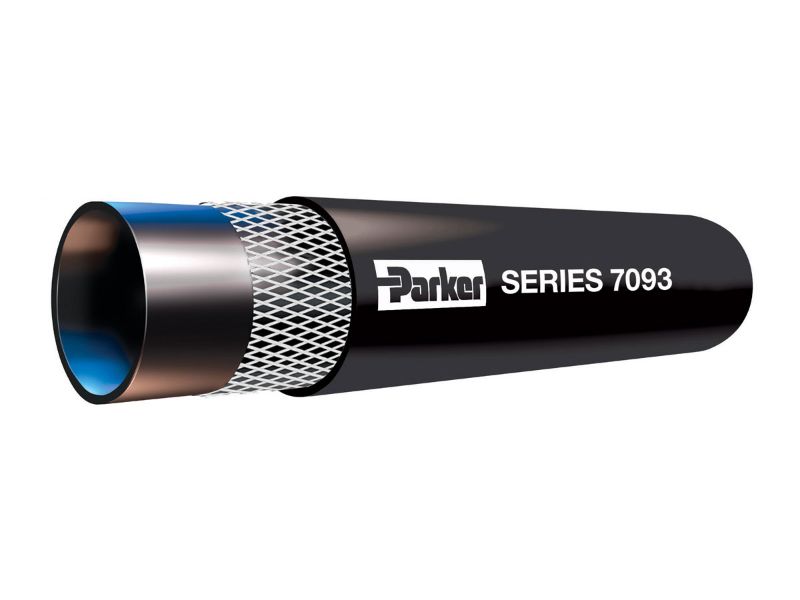

Picture of Parker 7093-100200 - GST® II General Purpose Air & Water Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 7093-100200 - GST® II General Purpose Air & Water Hose

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi
AFP Availability:
2149 In Stock
Sumter, SC2,149
Partner Available:6094 In Stock
Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
Brand Parker
Part No. 7093-100200
$3.58/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTCover ColorBlack
DivisionHose Products DivisionInside Diameter25.4 mm
Cover StructureSmoothOutside Diameter1.410 inch
Compatible FittingHY SeriesPackage TypeCarton
MediaMild Chemicals - Check your fluid compatibility with our catalogue chart.Hose Inner Tube MaterialEthylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
Maximum Operating Temperature212 °FMinimum Operating Temperature-40 °C
Cover MaterialEthylene Propylene Diene Monomer (EPDM)ApplicationMultipurpose
Weight0.47 lb/ftMaximum Operating Pressure13.8 bar
Specifications MetARPM Class C TubeHose Reinforcement Material2 Plies of Textile
Tube MaterialEthylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)Minimum Bend Radius7 inch
ColorBlackHose I.D. (inch)1
Maximum Working Pressure (psi)200Standard Pack Qty (ft)300
Package TypeReelColorBlack
Inner Diameter1 InchPkg Qty/UOM300 FT
Working Pressure200 PSI (14 bar)Pkg Qty300
UOMFTMating Fitting SeriesHY
Trade NameGST® IIInner Diameter Inch/mmInch
Mating End Fitting SeriesHYInch/MetricInch
Inner Diameter1 InchColorBlack
Parker GroupFluid ConnectorParker DivisionHose Products
Series7093Hose CategoryAir & Multipurpose
Hose Pressure RangeLow
California Residents: Prop-65 Warning
Product resources

Literature and Reference Materials
