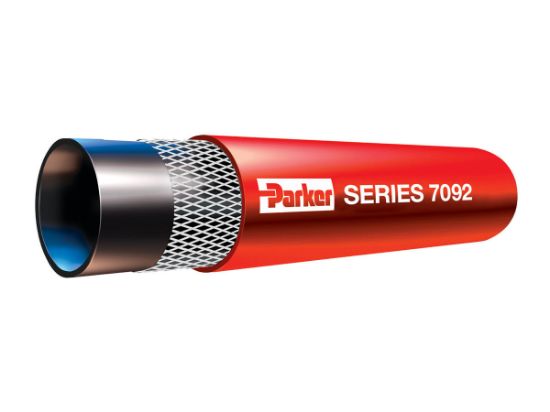

Parker 7092-19300 - GST® II General Purpose Air & Water Hose

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7092-19300

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Hose Products Division
Minimum Operating Temperature	-40	Maximum Operating Temperature	212
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Minimum Bend Radius	2
Maximum Operating Pressure	300	Application	Air
Cover Color	Red	Cover Structure	Smooth
Hose Reinforcement Material	2 Plies of Textile	Compatible Fitting	n/a
Inside Diameter	3/16	Weight	0.07
Package Type	Carton	Specifications Met	ARPM Class C Tube
Hose Inner Tube Material	Black (ARPM Class C Oil Resistance)	Tube Material	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
Outside Diameter	0.437	Color	Red
Hose I.D. (inch)	3/16	Maximum Working Pressure (psi)	300
Standard Pack Qty (ft)	800	Working Pressure	300 PSI (20 bar)
Color	Red	Inner Diameter	0.188 Inch
UOM	FT	Package Type	Reel
Pkg Qty	800	Pkg Qty/UOM	800 FT
Parker Division	Hose Products	Inner Diameter	0.188 Inch
Parker Group	Fluid Connector	Inner Diameter Inch/mm	Inch
Color	Red	Hose Category	Air & Multipurpose
Hose Pressure Range	Low	Inch/Metric	Inch
Series	7092	Trade Name	GST® II

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
