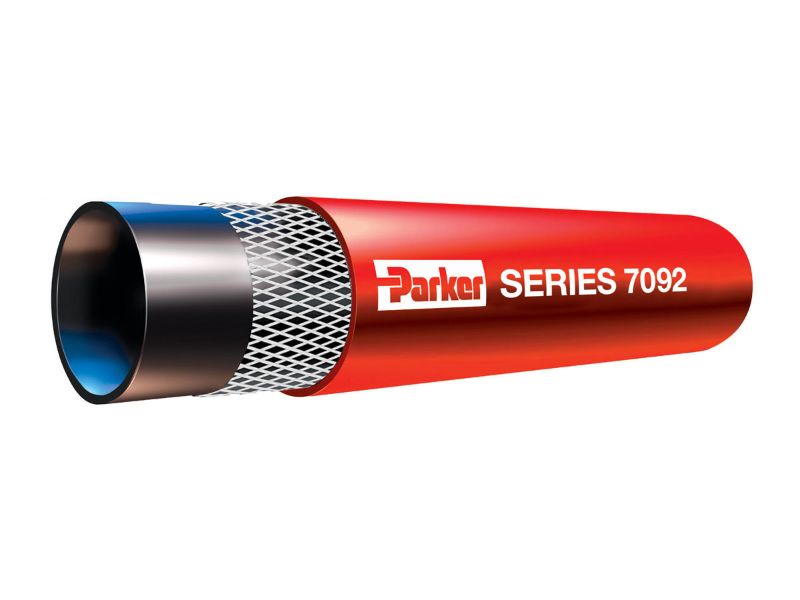

Parker 7092-10020050 - GST® II General Purpose Air & Water Hose

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7092-10020050

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Hose Products Division
Minimum Operating Temperature	-40	Maximum Operating Temperature	212
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Application	Air
Inside Diameter	1	Cover Color	Red
Cover Structure	Smooth	Hose Reinforcement Material	2 Plies of Textile
Maximum Operating Pressure	200	Minimum Bend Radius	7
Compatible Fitting	HY Series	Package Type	Carton
Specifications Met	ARPM Class C Tube	Weight	0.47
Outside Diameter	1.406	Hose Inner Tube Material	Black (ARPM Class C Oil Resistance)
Tube Material	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)	Standard Pack Qty (ft)	50
Color	Red	Hose I.D. (inch)	1
Maximum Working Pressure (psi)	200	Mating Fitting Series	HY
Color	Red	Pkg Qty	50
Working Pressure	200 PSI (14 bar)	Inner Diameter	1 Inch
Package Type	Carton	UOM	FT
Pkg Qty/UOM	50 FT	Parker Group	Fluid Connector
Parker Division	Hose Products	Inner Diameter Inch/mm	Inch
Hose Pressure Range	Low	Hose Category	Air & Multipurpose
Series	7092	Color	Red
Mating End Fitting Series	HY	Trade Name	GST® II
Inner Diameter	1 Inch	Inch/Metric	Inch

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
