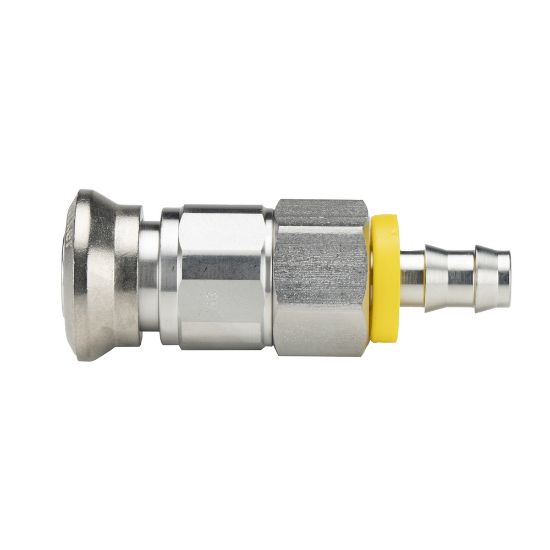

Parker 6PL-Q8CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6PL-Q8CY-SSP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Vacuum Pressure Rating	0.05 mm-Hg
Valve Type	Poppet	Product Type	Push-to-Connect
Hose Inside Diameter	3/8	Minimum Operating Temperature	-15 °F
Application	Instrumentation	Body Material	316 Stainless Steel
Maximum Operating Pressure	750 psi	Maximum Operating Temperature	400 °F
Division	Quick Coupling Division	Connection Type	Push-Lok hose barb
Tube Size (inch)	3/8	Coupling Half	Female Coupler
Connection Thread Size (inch)	na	Body Size (inch)	1/2
Maximum Operating Pressure	750

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
