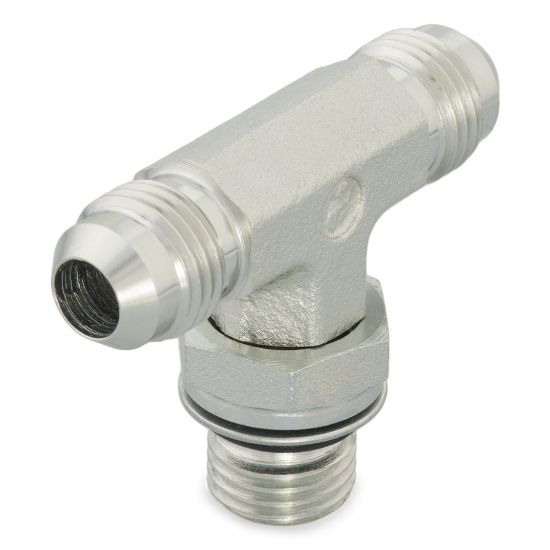

Parker 6M14S87OMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6M14S87OMXS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 3 Tube Outside Diameter	na	Connection 2 Size	Male 37° Flare
Division	Tube Fittings Division	Connection 3 Thread Size	na
Connection 4 Tube Outside Diameter	na	Specifications Met	SAE J514 and ISO 8434-2
Connection 2 Tube Outside Diameter	10 mm	Connection 3 Size	Male ISO 6149
Connection 4 Size	na	Maximum Dynamic Pressure	6000 psi
Shape	Tee	Connection 2 Thread Size	na
Connection 1 Tube Outside Diameter	3/8 inch	Connection Type	37° Flare
O-Ring Material	90 Durometer Nitrile	Connection 1 Size	Male 37° Flare
Body Material	Steel

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
