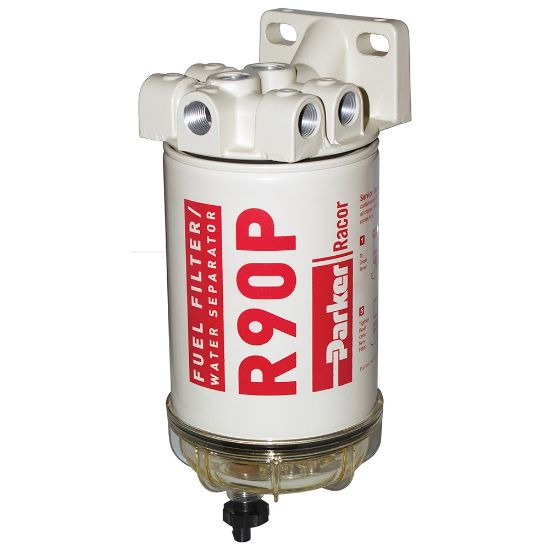

Parker 690R30 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 690R30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Head Material	Aluminium Alloy	Width	114.0 mm
Maximum Fluid Temperature	88.0 °C	Clean Pressure Drop	2 kPa
Brand	Racor	Division	Engine Mobile Original Equipment Division
Height	11.2 inch	Filter Element Type	30 Micron Aquabloc Spin-on
Operating Temperature	-40 to 121 °C	Accessories Included	See Product Support Tab
Maximum Operating Pressure	30 psi	For Fluid Type	Diesel and Gasoline
Compatible Element	R90S = "2" Micron<br/>R90T = 10 Micron<br/>R90P = 30 Micron	Number of Ports	2 Inlet / 2 Outlet
Weight	2.7 lb	Product Type	Diesel Spin-on FF/WS
Depth	114.0 mm	Location	North America and EMEA regions
Heater Power Rating	No Heater	Mounting	Bracket Included
Part Type	Filter Assembly	Bowl Type	Standard, Clear Engineering Plastic
Integral Primer Pump Included	No Pump	Flow Rate	90 gph (341 lph)
Port Size	3/8"-18 NPTF (SAE J476)	Bowl Material	Clear Engineering Plastic
Micron Rating	98% @ 30 Micron	Product Series	Diesel Spin-on 600

Product resources

Literature and Reference Materials

Literature and Reference Materials, Selector Guides

Racor--600 Diesel Spin-on--RSL0367 (PDF)
