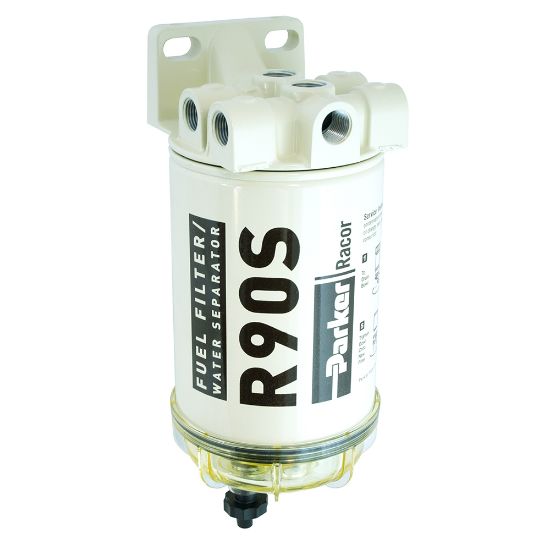

Parker 690R2MTC - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 690R2MTC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Filter Element Type	2 Micron Aquabloc Spin-on	Operating Temperature	-40 to 250
Maximum Fluid Temperature	190.0	Division	Engine Mobile Original Equipment Division
Clean Pressure Drop	0.29	Width	4.5
Maximum Operating Pressure	30	Number of Ports	2 Inlet / 2 Outlet
Product Type	Diesel Spin-on FF/WS	Accessories Included	See Product Support Tab
Weight	2.7	Depth	4.5
Head Material	Aluminium Alloy	Height	11.2
Brand	Racor	For Fluid Type	Diesel and Gasoline
Compatible Element	R90S = "2" Micron<br/>R90T = 10 Micron<br/>R90P = 30 Micron	Bowl Material	Clear Engineering Plastic
Flow Rate	90 gph (341 lph)	Port Size	M16 1.5 SAE
Mounting	Bracket Included	Product Series	Diesel Spin-on 600
Heater Power Rating	No Heater	Location	EMEA region only
Part Type	Filter Assembly	Bowl Type	Standard, Clear Engineering Plastic
Integral Primer Pump Included	No Pump	Micron Rating	98% @ 4 Micron
