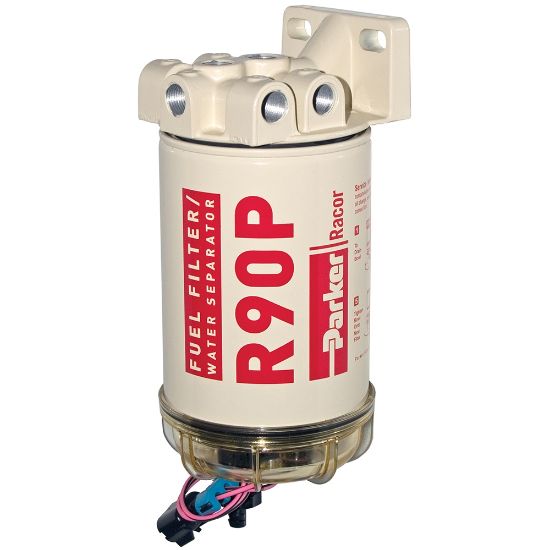

Parker 690R2430MTC - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 690R2430MTC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Accessories Included	See Product Support Tab	Operating Temperature	-40 to 121 °C
Depth	4.5 inch	Head Material	Aluminium Alloy
Filter Element Type	30 Micron Aquabloc Spin-on	Clean Pressure Drop	0.29 psi
Compatible Element	R90S = "2" Micron<br/>R90T = 10 Micron<br/>R90P = 30 Micron	Width	4.5 inch
Product Type	Diesel Spin-on FF/WS	Weight	2.7 lb
Height	284.0 mm	Number of Ports	2 Inlet / 2 Outlet
Maximum Operating Pressure	30 psi	For Fluid Type	Diesel
Brand	Racor	Division	Engine Mobile Original Equipment Division
Maximum Fluid Temperature	88.0 °C	Integral Primer Pump Included	No Pump
Location	EMEA region only	Bowl Type	Standard, Clear Engineering Plastic
Product Series	Diesel Spin-on 600	Flow Rate	90 gph (341 lph)
Bowl Material	Clear Engineering Plastic	Heater Power Rating	24V / 200W (Diesel Only)
Micron Rating	98% @ 30 Micron	Port Size	M16 1.5 SAE
Part Type	Filter Assembly	Mounting	Bracket Included
