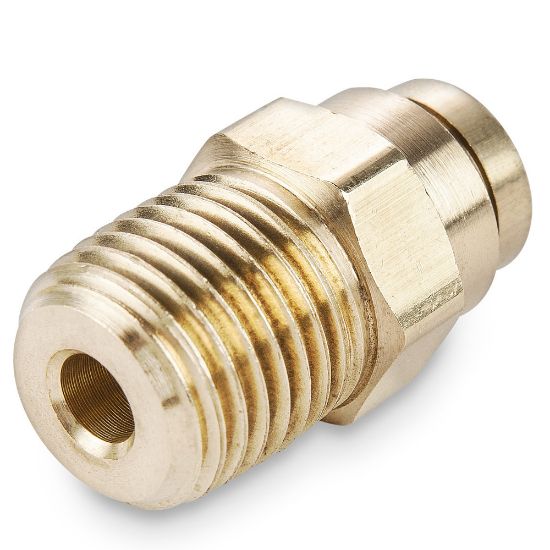

Parker 68PTC-4-2 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Name: Parker 68PTC-4-2 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR
SKU: 68PTC-4-2
Price: 5.36 USD
Availability: InStock

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

AFP Availability:

127 In Stock

North Chesterfield, VA	35
Summerville, SC	25
East Knoxville, TN	12
Richmond, VA	11 (Pickup only)
Ashland, VA	11 (Pickup only)
Sumter, SC	7
Fayetteville, NC	5
West Knoxville, TN	5
Johnson City, TN	5 (Pickup only)
Norfolk, VA	4
Jacksonville, FL	4
Mooresville, NC	3

Partner Available:

573 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 68PTC-4-2

$5.36/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Collet Material	Brass
Division	Fluid System Connectors Division	Connection Type	NPTF
O-Ring Material	Buna N	Maximum Operating Temperature	200 °F
Minimum Operating Temperature	-40 °F	Body Material	Brass
Tube Material	Stainless Steel	Application	Air Brakes
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3	Maximum Operating Pressure	250 psi
Product Style	Connector	Configuration	Tube to Pipe
Connection 2 Size	1/8"	Connection 1 Type	Push-to-Connect
Connection 1 Size	1/4"	Thread Sealant Material	n/a
Body Material	BRASS	Connection 2 Type	Male NPT
