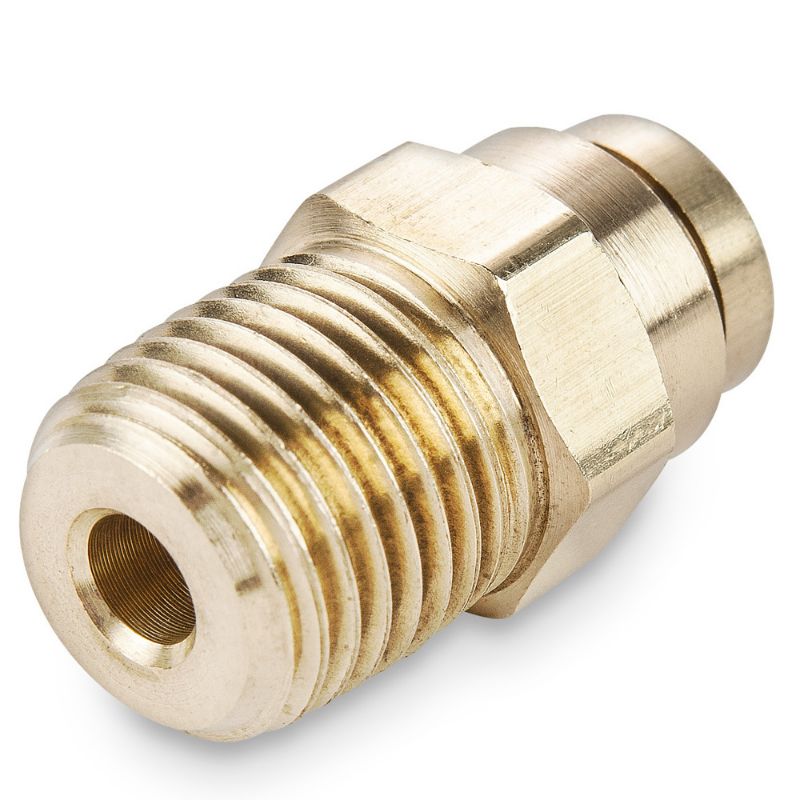

Parker 68PTC-10-6 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Name: Parker 68PTC-10-6 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR
SKU: 68PTC-10-6
Price: 20.74 USD
Availability: InStock

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

AFP Availability:

38 In Stock

East Knoxville, TN	10
Richmond, VA	7 (Pickup only)
West Knoxville, TN	7
North Chesterfield, VA	4
Johnson City, TN	4 (Pickup only)
Mooresville, NC	4
Ashland, VA	2 (Pickup only)

Partner Available:

211 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 68PTC-10-6

$20.74/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Air Brakes
Minimum Operating Temperature	-40 °C	Maximum Operating Pressure	250 psi
Tube Material	Stainless Steel	Specifications Met	DOT FMVSS 571.106, SAE J2494, SAE J2494-3
Connection Type	NPTF	Division	Fluid System Connectors Division
O-Ring Material	Buna N	Body Material	Brass
Maximum Operating Temperature	200 °F	Collet Material	Brass
Thread Sealant Material	n/a	Connection 2 Size	3/8"
Body Material	BRASS	Connection 2 Type	Male NPT
Connection 1 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 1 Size	5/8"	Product Style	Connector
