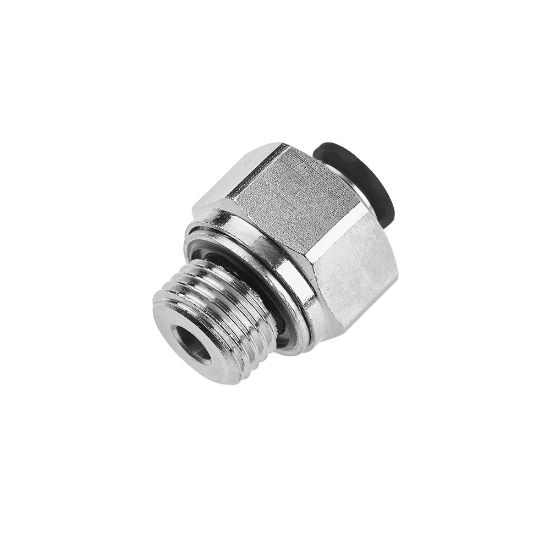

Parker 68PLP-4-4G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 68PLP-4-4G

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	Seal Material	Nitrile
Vacuum Pressure Rating	28 Inch-Hg	For Fluid Type	Oil
Technology	Pneumatics	Specifications Met	UL 94 V-0
Materials of Construction	PVDF (Button)	Industry	Automotive
Body Material	Brass, Nickel-plated	Maximum Operating Pressure	20.6 bar
Region of Origin	United States	Gripping Ring Material	Stainless Steel
Maximum Operating Temperature	93.3 °C	Minimum Operating Temperature	-17.7 °C
Tube Material	Polyethylene	Application	Air Lines
Hex Size	3/4 inch	Connection 1 Size	1/4"
Connection 2 Size	1/4"	Product Style	Connector
Connection 1 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 2 Type	Male BSPP
