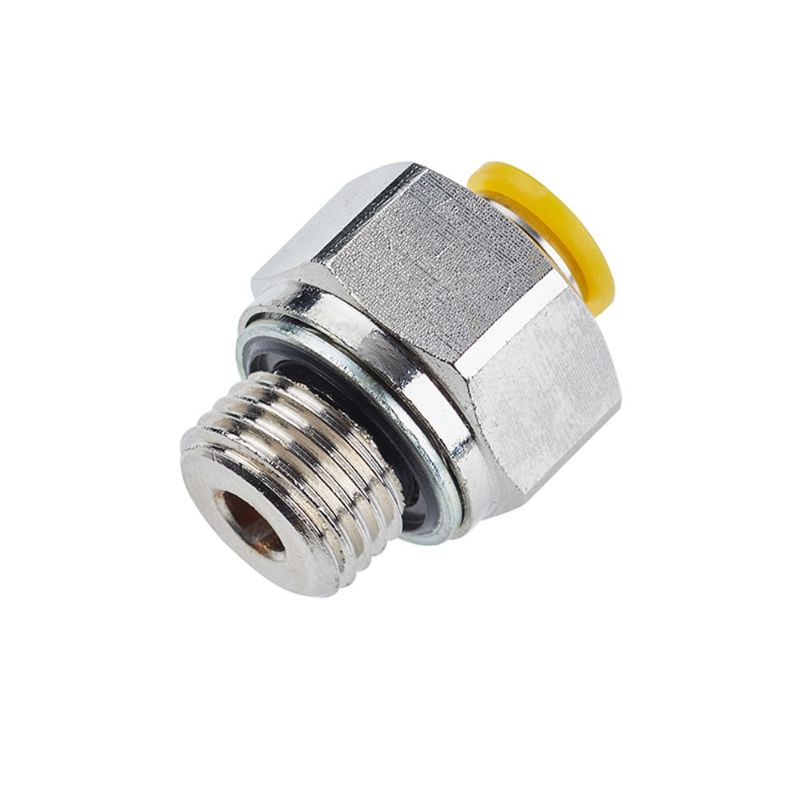

Parker 68PLP-12M-8G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

AFP Availability:	Quote Required
Partner Available:	17 In Stock

Brand Parker

Part No. 68PLP-12M-8G

$18.16/each

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	UL 94 V-0
Application	Vacuum	Minimum Operating Temperature	0 °F
Division	Fluid System Connectors Division	Gripping Ring Material	Stainless Steel
Materials of Construction	PVDF (Button)	Industry	Industrial Manufacturing Equipment
Brand	Parker	Maximum Operating Pressure	300 psi
Seal Material	Nitrile	Tube Material	Polyurethane 90 to 95 Durometer Shore A
Division	Fluid System Connectors Division	Maximum Operating Temperature	93.3 °C
For Fluid Type	Air	Vacuum Pressure Rating	28 Inch-Hg
Hex Size	1-1/16 inch	Body Material	Brass, Nickel-plated
Region of Origin	United States	Technology	Fluid & Gas Handling
Connection 2 Size	1/2"	Product Style	Connector
Connection 1 Size	12 mm	Connection 1 Type	Push-to-Connect
Configuration	Tube to Pipe	Connection 2 Type	Male BSPP
