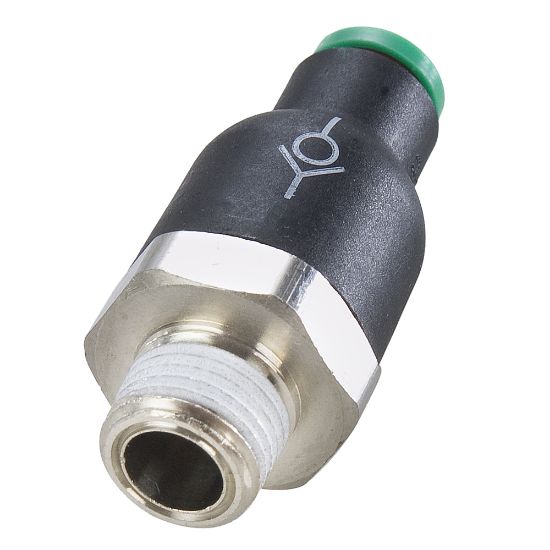

Parker 68PLCKI-4M-0 - Check Valves

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 68PLCKI-4M-0

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cracking Pressure	7 psi	Media	Compressed Air
Shape	Threaded	Maximum Operating Temperature	150 °F
Connection Type	UNF	Connection 2 Tube Outside Diameter	N/A
Connection 2 Thread Size	10-32 inch	Application	Pneumatics, Robotics, Textile, Semi-conductors, Packaging
Connection 1 Size	Push-to-connect	Connection 2 Size	UNF
Gripping Ring Material	Stainless Steel	Connection 1 Tube Outside Diameter	5/32 inch
Maximum Operating Pressure	145 psi	Product Style	Tube to Pipe
Valve Configuration	One Way	Thread Material	Plated Brass
Connection 1 Thread Size	N/A	Seal Material	Nitrile
Minimum Operating Temperature	34 °F	Division	Fluid System Connectors Division
Body Material	Nylon
