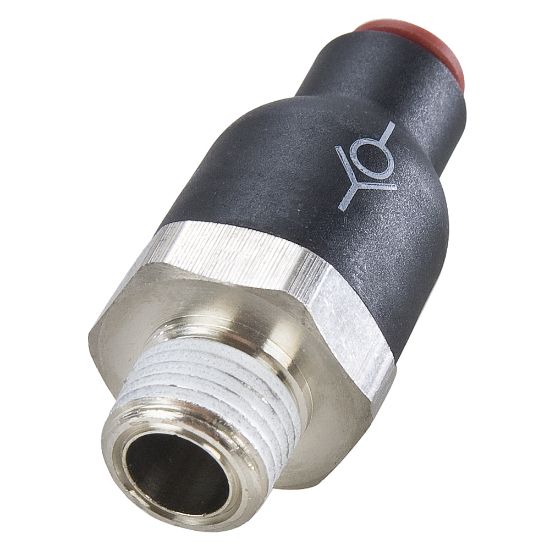

Parker 68PLCK-8M-4G - Check Valves

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 68PLCK-8M-4G

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Nylon	Connection 1 Tube Outside Diameter	8 mm
Gripping Ring Material	Stainless Steel	Connection 2 Size	BSPP
Maximum Operating Pressure	145 psi	Thread Material	Plated Brass
Connection 2 Tube Outside Diameter	N/A	Seal Material	Nitrile
Division	Fluid System Connectors Division	Connection 1 Thread Size	N/A
Media	Compressed Air	Shape	Threaded
Connection 2 Thread Size	N/A	Connection Type	BSPP
Maximum Operating Temperature	150 °F	Minimum Operating Temperature	1 °C
Cracking Pressure	7 psi	Valve Configuration	One Way
Product Style	Tube to Pipe	Connection 1 Size	Push-to-connect
Application	Textile

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
