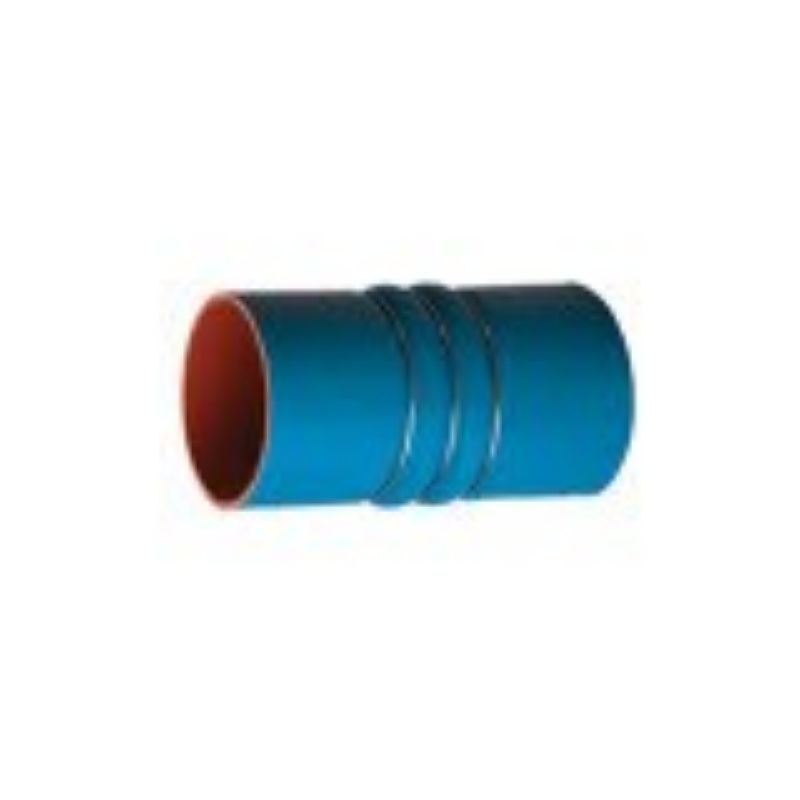

Parker 6824-30006000 - Silicone High Temperature Charge Air Cooler Hose, Series 6824

Silicone High Temperature Charge Air Cooler Hose is designed to connect, align and transfer the intake air from the charging system of heavy duty engine applications to 350°F and 25 psi, Series 6824

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6824-30006000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Silicone Coolant	Hose Reinforcement Material	4 Plies of High Temperature Textile (with external Stainless Steel Retaining Rings)
Outside Diameter	3.320 inch	Minimum Bend Radius	n/a
Maximum Operating Temperature	500 °F	Specifications Met	SAE J20R5
Minimum Operating Temperature	-54 °C	Division	Hose Products Division
Inside Diameter	76.2 mm	Media	Air (Hot Air)
Weight	0.52 lb/ft	Cover Material	Silicone
Minimum Burst Pressure	80 psi	Cover Color	Blue
Hose Inner Tube Material	Silicone	Maximum Operating Pressure	5.5 bar
Minimum Burst Pressure (psi)	80	Standard Package Quantity	6 x 6-in lg
Hose I.D. (inch)	3
