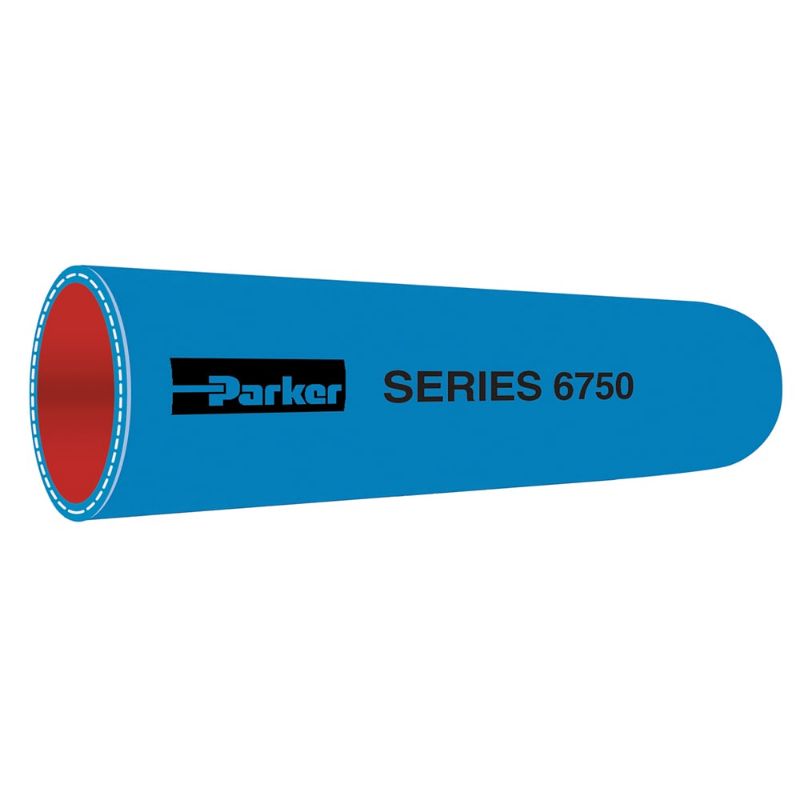

Parker 6750-3000003 - Silicone Standard Wall High Temperature Coolant Hose, Series 6750

Silicone Standard Wall High Temperature Coolant Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 159 psi, Series 6750

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 6750-3000003

$203.72/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Media	Water
Quantity per Box	1 x 3-ft Lengths	Minimum Burst Pressure	6 bar
Maximum Operating Temperature	176 °C	Division	Hose Products Division
Minimum Operating Temperature	-54 °C	Application	Engine
Package Type	Carton	Hose Inner Tube Material	Brick Red
Weight	4.46 kg/m	Maximum Operating Pressure	2 bar
Hose Reinforcement Material	Multiple Plies of High Temperature Textile	Cover Material	Silicone
Specifications Met	SAE J20R1, Class A	Minimum Bend Radius	n/a
Cover Color	Blue	Inside Diameter	3 inch
Outside Diameter	85.1 mm	Cover Structure	Glossy
Hose I.D. (inch)	3	Minimum Burst Pressure (psi)	87

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
