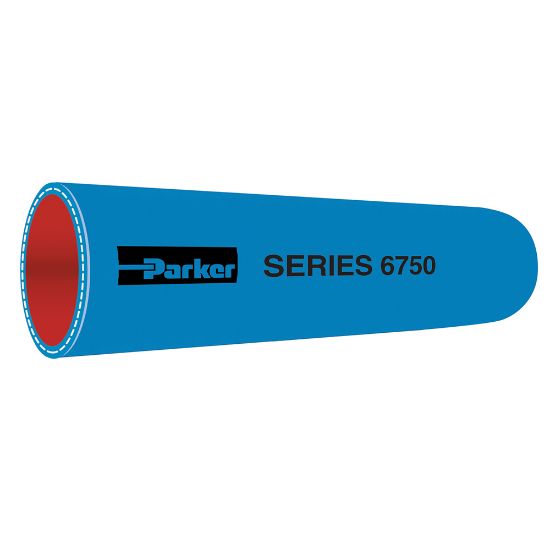

Parker 6750-0625003 - Silicone Standard Wall High Temperature Coolant Hose, Series 6750

Silicone Standard Wall High Temperature Coolant Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 159 psi, Series 6750

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6750-0625003

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Cover Color	Blue
Minimum Operating Temperature	-65	Minimum Bend Radius	n/a
Inside Diameter	5/8	Application	Engine
Media	Coolants	Maximum Operating Pressure	125
Outside Diameter	0.970	Weight	0.83
Specifications Met	SAE J20R1, Class A	Cover Material	Silicone
Cover Structure	Glossy	Quantity per Box	1 x 3-ft Lengths
Maximum Operating Temperature	350	Package Type	Carton
Minimum Burst Pressure	376	Hose Inner Tube Material	Brick Red
Hose Reinforcement Material	Multiple Plies of High Temperature Textile	Hose I.D. (inch)	5/8
Minimum Burst Pressure (psi)	376

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
