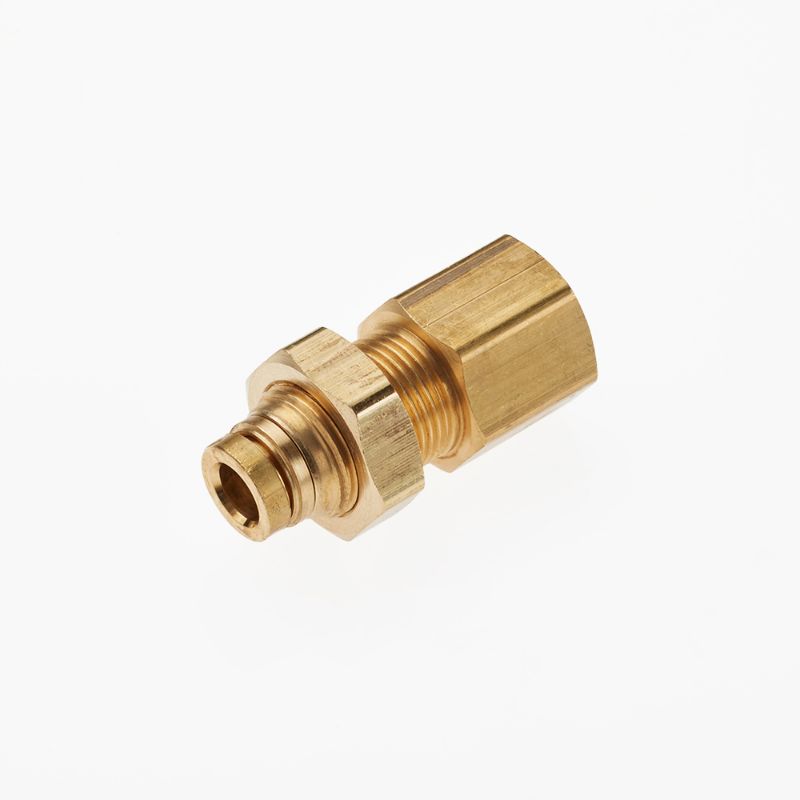

Parker 66PTCBH-4-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

AFP Availability:	Quote Required
Partner Available:	101 In Stock

Brand Parker

Part No. 66PTCBH-4-4

$18.07/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	200 °F
Body Material	Brass	Body Material	BRASS
Connection 2 Type	Female NPT	Connection 1 Size	1/4"
Connection 2 Size	1/4"	Connection 1 Type	Push-to-Connect
Thread Sealant Material	n/a	Configuration	Tube to Female Pipe
Product Style	Bulkhead
