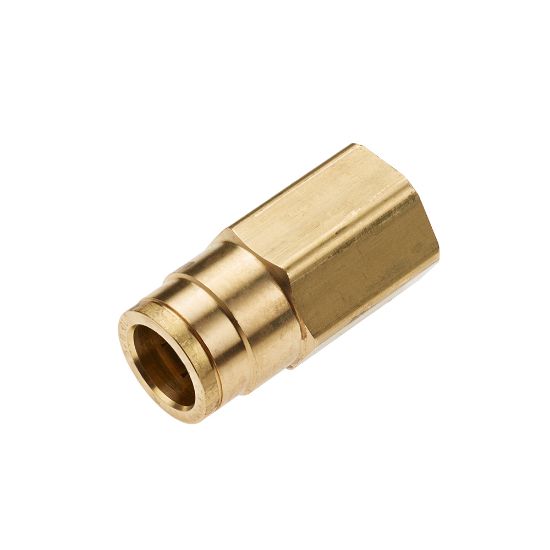

Parker 66PTC-8-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 66PTC-8-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Minimum Operating Temperature	-40 °C	Connection Type	NPTF
Maximum Operating Pressure	250 psi	Maximum Operating Temperature	93.3 °C
O-Ring Material	Buna N	Application	Air Brakes
Collet Material	Brass	Tube Material	Stainless Steel
Specifications Met	DOT FMVSS 571.106, SAE J2494, SAE J2494-3	Body Material	BRASS
Connection 2 Type	Female NPT	Connection 1 Size	1/2"
Connection 2 Size	1/4"	Product Style	Connector
Connection 1 Type	Push-to-Connect	Thread Sealant Material	n/a
Configuration	Tube to Female Pipe
