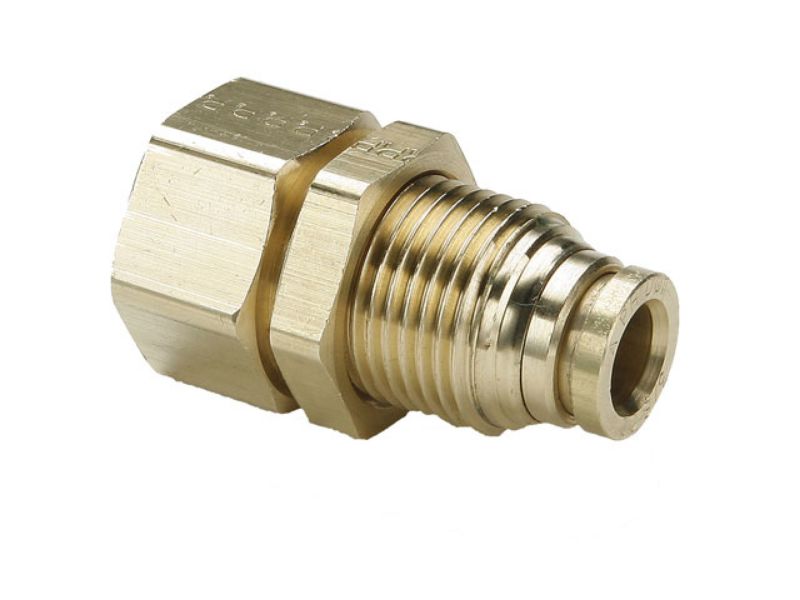

Parker 66PMTBH-8-8 - Prestomatic 66PMTBH

Female Connector Bulkhead - Push-to-Connect Transportation Fitting

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 66PMTBH-8-8

Products specifications

Attribute name	Attribute value
UOM	EA	Outer Diameter 1	1/2 Inch
Pkg Qty	10	Thread 1	1/2 NPT
Pkg Qty/UOM	10 EA	Material	Brass
Parker Group	Fluid Connector	Inch/Metric	Inch
Material	Brass	Parker Division	Fluid Systems Connector (Brass Products)
Outer Diameter 1 Inch/mm	Inch	Series	Prestomatic
Operating Temperature	-40°F to +200°F	Trade Name	Prestomatic
Outer Diameter 1	1/2 Inch	Pressure Range	Up to 250 PSI
Thread 1 Type	NPT	Thread 1	1/2 NPT
Configuration Type	Tube to Female	Configuration Sub-Type	Female Connector Bulkhead

Product resources

Transportation Fittings (PDF)
