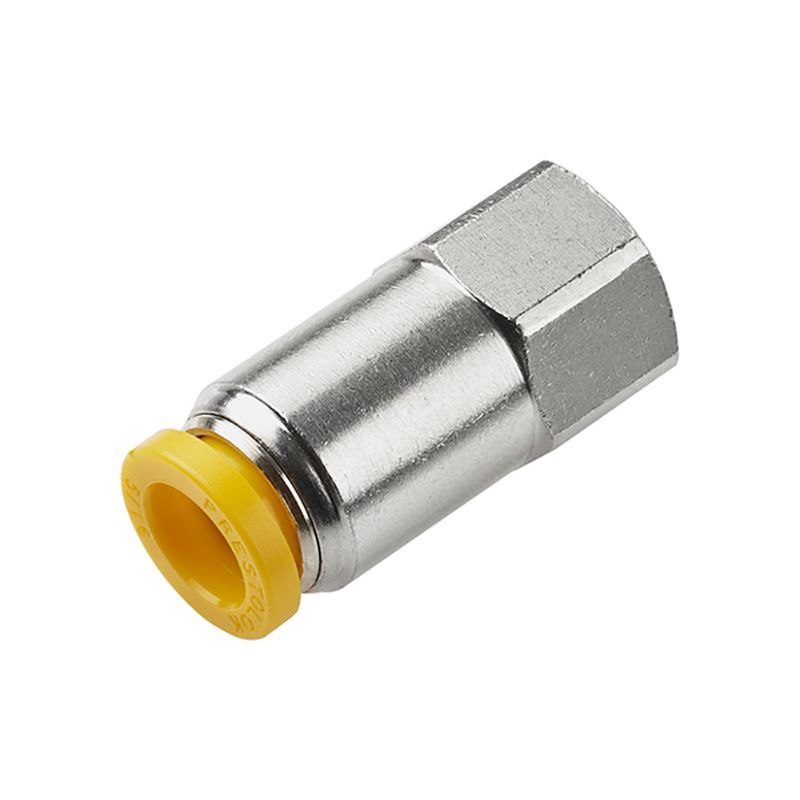

Parker 66PLP-6M-2G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 66PLP-6M-2G

$9.90

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Gripping Ring Material	Stainless Steel
Brand	Parker	Hex Size	9/16 inch
For Fluid Type	Air	Materials of Construction	PVDF (Button)
Industry	Automotive	Seal Material	Nitrile
Division	Fluid System Connectors Division	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	200 °F	Vacuum Pressure Rating	28 Inch-Hg
Technology	Pneumatics	Division	Fluid System Connectors Division
Application	Oil Lines	Tube Material	Rigid Nylon
Body Material	Brass, Nickel-plated	Specifications Met	UL 94 V-0
Minimum Operating Temperature	-17.7 °C	Region of Origin	United States
Connection 1 Type	Push-to-Connect	Connection 2 Type	Female BSPP
Product Style	Connector	Configuration	Tube to Pipe
Connection 2 Size	1/8"	Connection 1 Size	6 mm

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
