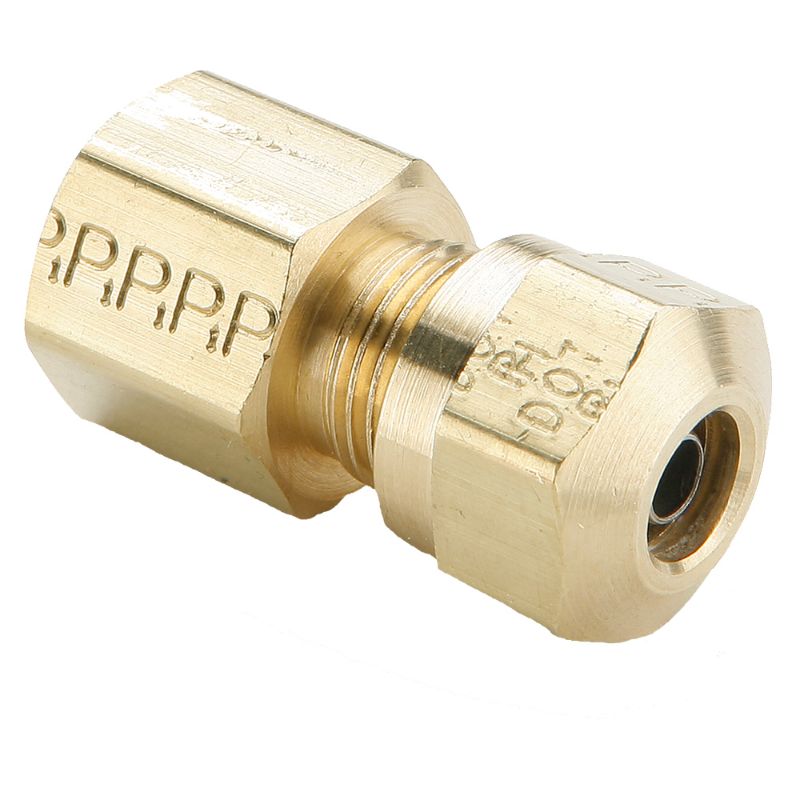

Parker 66NTA-4-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: Parker 66NTA-4-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: 66NTA-4-4
Price: 11.60 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

13 In Stock

Richmond, VA	3
Ashland, VA	2
Summerville, SC	2
Knoxville, TN	2
Knoxville, TN	2
Johnson City, TN	2

Partner Available:

85 In Stock

Brand Parker

Part No. 66NTA-4-4

$11.60

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Sealant Material	Vibra-Seal 516
Maximum Operating Pressure	150 psi	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Sleeve Material	Brass	Body Material	Brass
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	200 °F
Division	Fluid System Connectors Division	Application	Air Brake, Accessories
Tube Material	Stainless Steel	Nut Material	Brass
Connection 2 Thread Size (inch)	1/4	Shape	Connector
Connection 1 Tube O.D. (inch)	1/4	Connection 1 Style	Compression
Connection 2 Style	Female Pipe	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Style	Tube to Female Pipe
Connection 2 Tube O.D. (inch)	na
