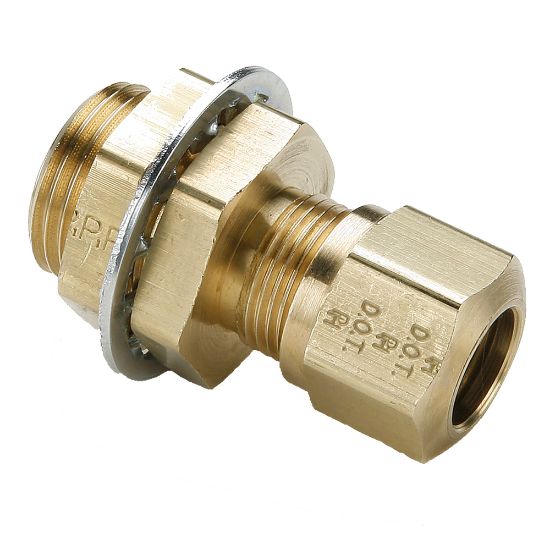

Parker 66NBH-8-6 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 66NBH-8-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Brass	Division	Fluid System Connectors Division
Nut Material	Brass	Dimensional Weight	0.27594424460431655 lb
Tube Material	Stainless Steel	Maximum Operating Pressure	10 bar
Application	Air Brake, Accessories	Sleeve Material	Brass
Maximum Operating Temperature	93 °C	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Minimum Operating Temperature	-40 °F	Thread Sealant Material	Vibra-Seal 516
Connection 2 Thread Size (inch)	3/8	Style	Tube to Female Pipe
Connection 3 Style	na	Connection 2 Style	Female Pipe
Connection 2 Tube O.D. (inch)	na	Connection 3 Thread Size (inch)	na
Connection 1 Tube O.D. (inch)	1/2	Connection 1 Style	Compression
Shape	Bulkhead
