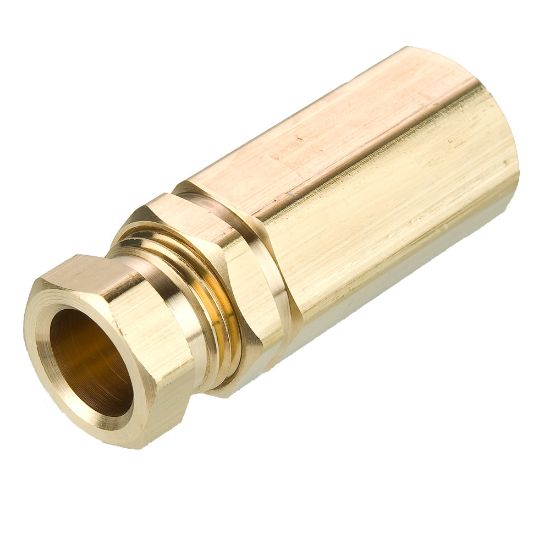

Parker 66HD-2-2 - Brass flareless tube fitting, Hi-Duty

Parker's Hi-Duty fitting is a preassembled brass fitting fitting with a sleeve machined onto the nut. This unique design creates tight joints that withstand pressures of most commomly used types of tubing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 66HD-2-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Nut Material	Brass	Sleeve Material	Brass
Minimum Operating Temperature	-65 °F	Tube Material	Tube Assemblies, Engine, Compressors
Maximum Operating Temperature	250 °F	Division	Fluid System Connectors Division
Application	Tube Assemblies, Engine, Compressors	Maximum Operating Pressure	296 bar
Body Material	Brass	Connection 2 Tube O.D. (inch)	na
Connection 1 Tube O.D. (inch)	1/8	Connection 1 Style	Compression
Connection 2 Style	Female Pipe	Connection 2 Thread Size (inch)	1/8
Shape	Connector	Style	Tube to Female Pipe
