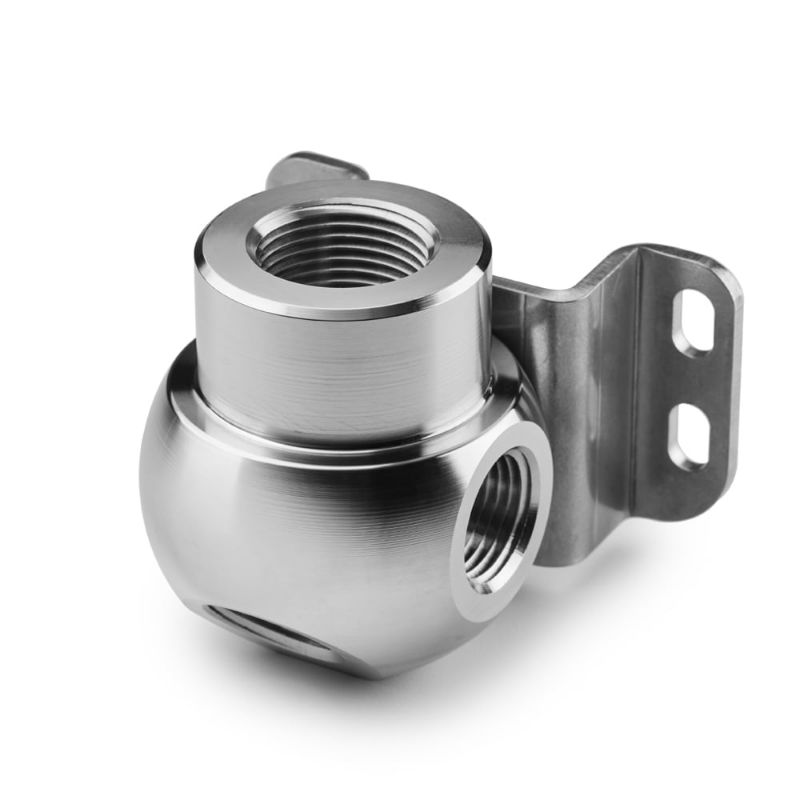

Picture of Parker 6691 22 22* - Transair® Wall Brackets for Stainless Steel Pipe

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 6691 22 22* - Transair® Wall Brackets for Stainless Steel Pipe

Transair wall brackets for stainless steel pipe are designed for quick connection of tools and machinery to the supply line.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 6691 22 22*
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
BrandParkerShapeStraight
IndustryGeneral IndustrialDivisionFluid System Connectors Division
Assemblyn/aConnection 2 TypeFemale NPT
DivisionLow Pressure Connectors Europe DivisionAssembly Time0.15
Seal MaterialNBRApplicationCompressed Air
TechnologyPneumaticsConfigurationPort to Port
Specifications MetCEFor Fluid TypeAir
Quantity per Box1Body MaterialTechnical Polymer
Minimum Operating Temperature-4Maximum Operating Temperature185
Product TypeWall BracketsConnection 1 SizeNPT 1/2
Connection 1 TypeFemale NPTConnection 2 SizeNPT 1/2
Maximum Operating Pressure232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/cConnection 3 SizeNPT 1/4
Connection 3 TypeFemale NPTPipe Outside Diameter25|16/5
Weight0,630Connection TypeFemale Threaded NPT
Shape2 Port 45° Threaded Wall Bracket
