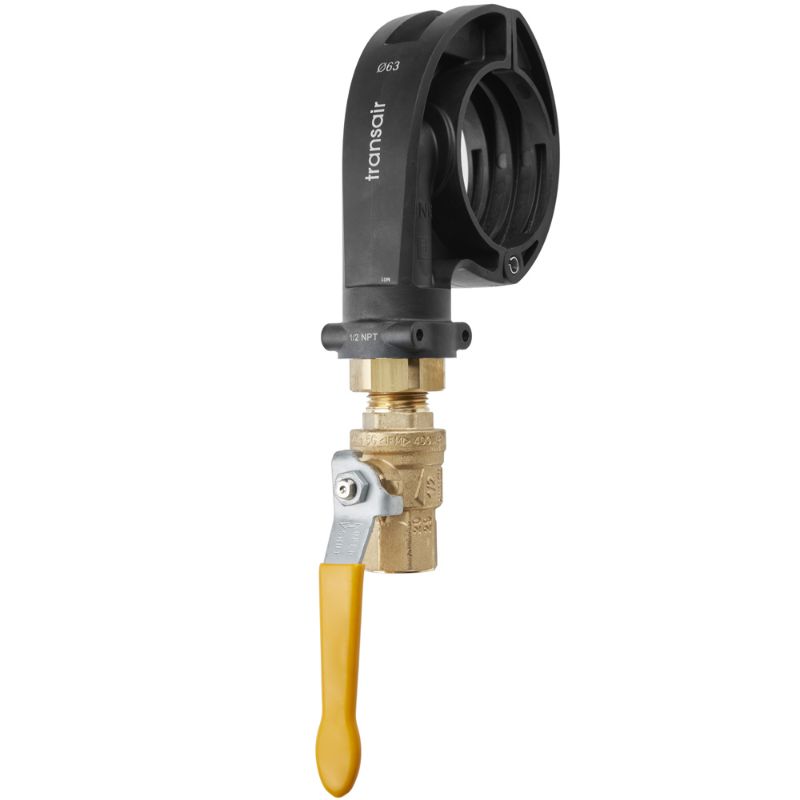

Parker 6668 63 22 - Transair® Drop Brackets for Aluminum Pipe

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6668 63 22

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Division	Fluid System Connectors Division
Minimum Operating Temperature	-20 °C	Industry	General Industrial
Technology	Fluid & Gas Handling	Application	Inert Gases
Assembly Time	0.05 Hours	Specifications Met	EN 573.3
Maximum Operating Pressure	232 psi	Maximum Operating Temperature	185 °F
Connection 1 Type	Pipe	Connection 2 Type	NPT
Connection 2 Size	1/2 inch	Body Material	Technical Polymer
Connection 1 Size	2-1/2 inch	Configuration	Pipe to Port
Shape	Swan Neck	Weight	1,51 kg
Product Style	Quick Assembly Bracket	For Fluid Type	Industrial Gas Compressed Air, Inert Gas, Vacuum
Quantity per Box	3	Vacuum Pressure Rating	1.0 mbar 99,9% (absolute pressure)
Assembly	Drop	Silicone Free	Yes
Connection 2 Size	1/2"	Body Material	Technical Polymer
Connection 1 Size	2-1/2" (63 mm)	Connection 2 Type	Quick Assembly Bracket w/ Ball Valve
