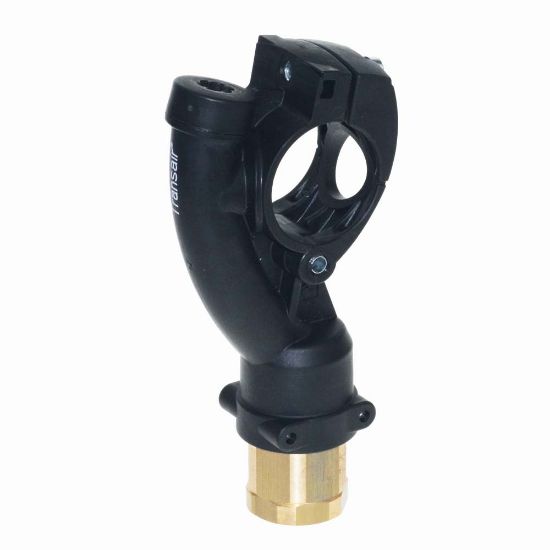

Parker 6661 40 21 - Transair® Drop Brackets for Aluminum Pipe

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6661 40 21

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Quantity per Box	10	Brand	Transair
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Technology	Fluid & Gas Handling
Application	In Plant Pneumatic	Division	Low Pressure Connectors Europe Division
Assembly Time	0.05 Hours	Specifications Met	EN 573.3
Connection 1 Type	Pipe	Connection 2 Type	Female
Body Material	Technical Polymer	Connection 1 Size	40 mm
Configuration	Pipe to Port	Connection 2 Size	G 1/2
Shape	Swan Neck	Weight	0,205 lb
Product Style	Quick Assembly Bracket	For Fluid Type	Industrial Gas Compressed Air, Inert Gas, Vacuum
Vacuum Pressure Rating	1.0 mbar 99,9% (absolute pressure)	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) for all diameters 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) for all diameters For Canada, Please refer to https://www.par
Assembly	Drop	Silicone Free	Yes
Connection 2 Size	1/2"	Body Material	Technical Polymer
Connection 1 Size	1-1/2" (40 mm)	Connection 2 Type	Female Threaded BSP Quick Assembly Bracket
