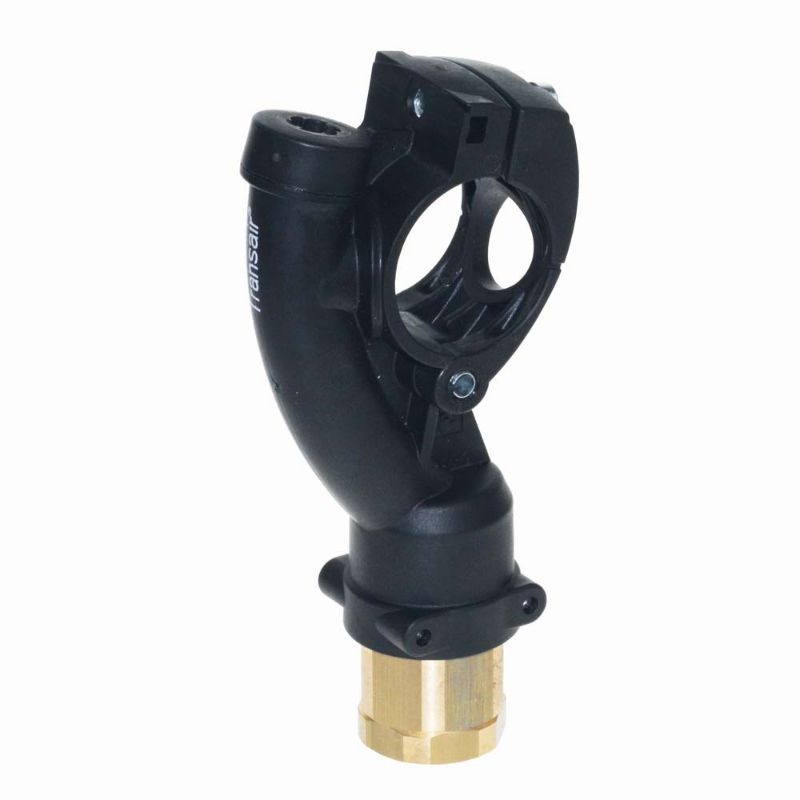

Parker 6661 25 21 - Transair® Drop Brackets for Aluminum Pipe

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6661 25 21

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Quantity per Box	10	Brand	Transair
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-4 °F
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Low Pressure Connectors Europe Division	Application	Compressed Air
Assembly Time	0.05 Hours	Specifications Met	EN 755.2
Connection 1 Type	Pipe	Connection 2 Type	Female
Maximum Operating Pressure	16 bar	Body Material	Technical Polymer
Connection 1 Size	1 inch	Configuration	Pipe to Port
Connection 2 Size	G 1/2	Shape	Swan Neck
Weight	0.186 kg	Product Style	Quick Assembly Bracket
For Fluid Type	Industrial Gas Compressed Air, Inert Gas, Vacuum	Vacuum Pressure Rating	0.03 inch-Hg 99,9% (absolute pressure)
Assembly	Drop	Silicone Free	Yes
Connection 2 Size	1/2"	Body Material	Technical Polymer
Connection 1 Size	1" (25 mm)	Connection 2 Type	Female Threaded BSP Quick Assembly Bracket
