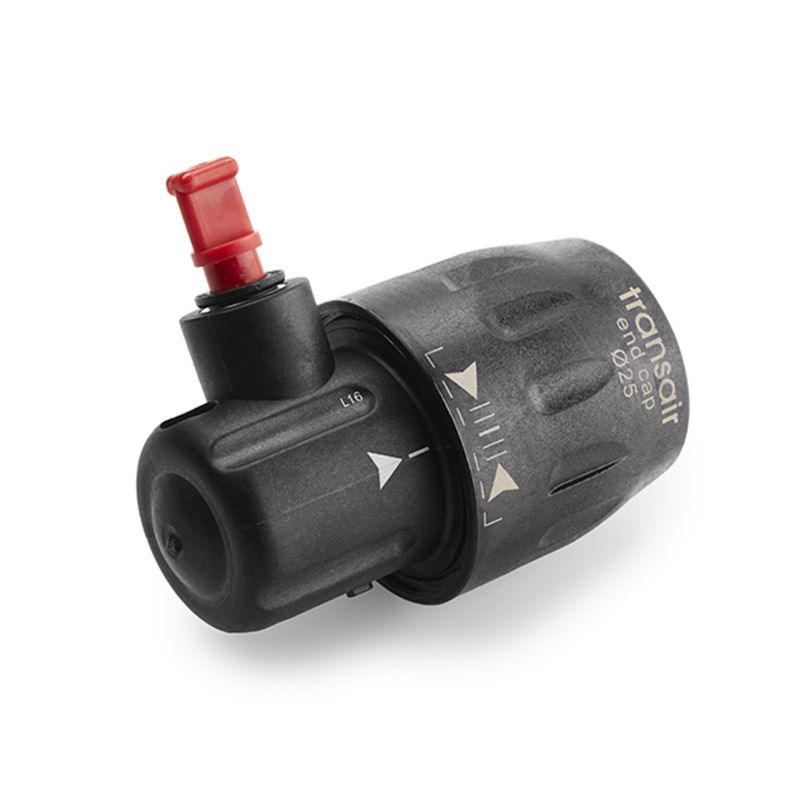

Parker 6625 40 00 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

AFP Availability:	Quote Required
Partner Available:	168 In Stock

Brand Parker

Part No. 6625 40 00

$50.92/each

Products specifications

Attribute name	Attribute value
UOM	EA	Vacuum Pressure Rating	0.03 inch-Hg
Weight	0.4 lb	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Brand	Transair	Industry	General Industrial
Technology	Pneumatics	Assembly Time	0.02 Hours
Quantity per Box	1	Maximum Operating Temperature	85 °C
Configuration	Pipe to End	Connection 2 Size	40 mm
Division	Low Pressure Connectors Europe Division	For Fluid Type	Industrial Gas
Product Style	Union Fitting	Division	Low Pressure Connectors Europe Division
Body Material	Technical Polymer	Connection 1 Size	40 mm
Connection 2 Type	n/a	Specifications Met	ISO 8573 (Air Quality)
Connection 1 Type	Pipe	Shape	Vented End Cap
Minimum Operating Temperature	-20 °C	Application	Vacuum
Product Type	Compressed Air Piping	Pipe O.D. (mm)	40
Pipe O.D. (inch)	1-1/2	Connection Thread Size (inch)	n/a
Silicone Free	Yes	Product Style	Pipe
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
