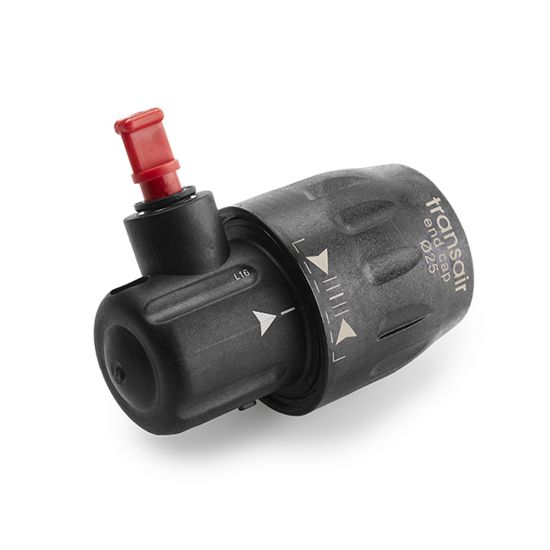

Parker 6625 17 00 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	35 In Stock

Brand Parker

Part No. 6625 17 00

$51.99

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Low Pressure Connectors Europe Division	Specifications Met	TUV
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
For Fluid Type	Air	Connection 1 Type	Pipe
Quantity per Box	1	Connection 2 Size	1/2 inch
Body Material	Technical Polymer	Connection 1 Size	1/2 inch
Application	Inert Gas	Product Style	Union Fitting
Weight	0.145 kg	Shape	Vented End Cap
Assembly Time	0.02 Hours	Configuration	Pipe to End
Connection 2 Type	n/a	Pipe O.D. (mm)	16.5
Pipe O.D. (inch)	1/2	Connection Thread Size (inch)	n/a
Silicone Free	Yes	Product Style	Pipe
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
