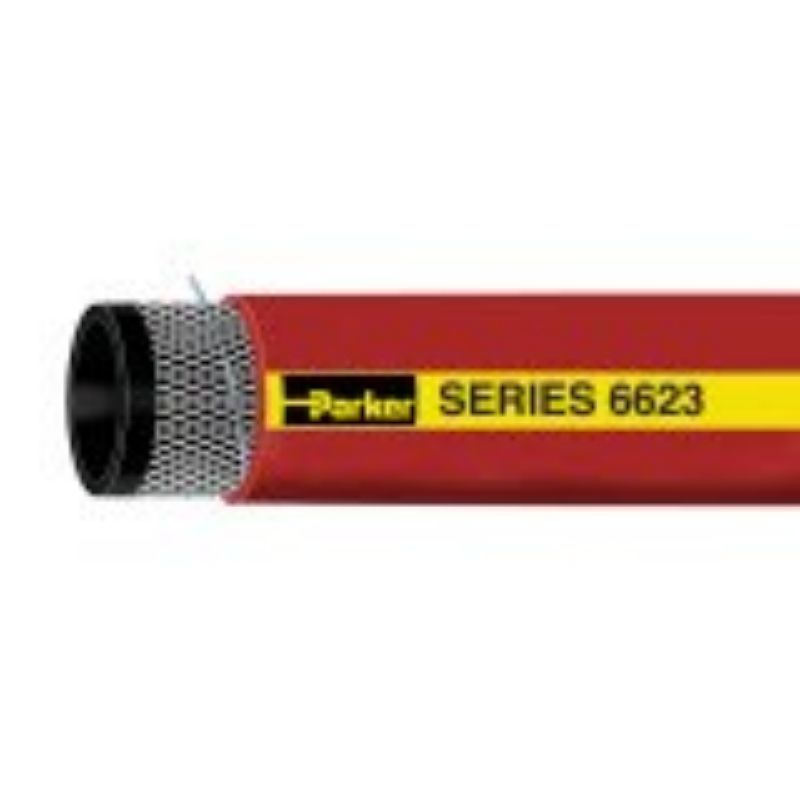

Parker 6623-1125130 - Silicone High Temperature Coolant Suction Hose, Series 6623

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6623-1125130

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Package Type	Coil
Cover Color	Red	Hose Inner Tube Material	Black
Outside Diameter	1.500	Inside Diameter	1-1/8
Application	Engine	Media	Coolants
Weight	0.46	Specifications Met	ISO 1307.0
Vacuum Pressure Rating	17.7	Maximum Operating Pressure	130
Maximum Operating Temperature	392	Minimum Operating Temperature	-76
Design Factor	3:1	Cover Material	Silicone
Cover Structure	Glossy	Minimum Bend Radius	4.1
Minimum Burst Pressure	390	Hose Reinforcement Material	Multiple Plies of High Temperature Textile with Wire Helix
Length per Package	130	Hose I.D. (inch)	1-1/8
Minimum Burst Pressure (psi)	390

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
