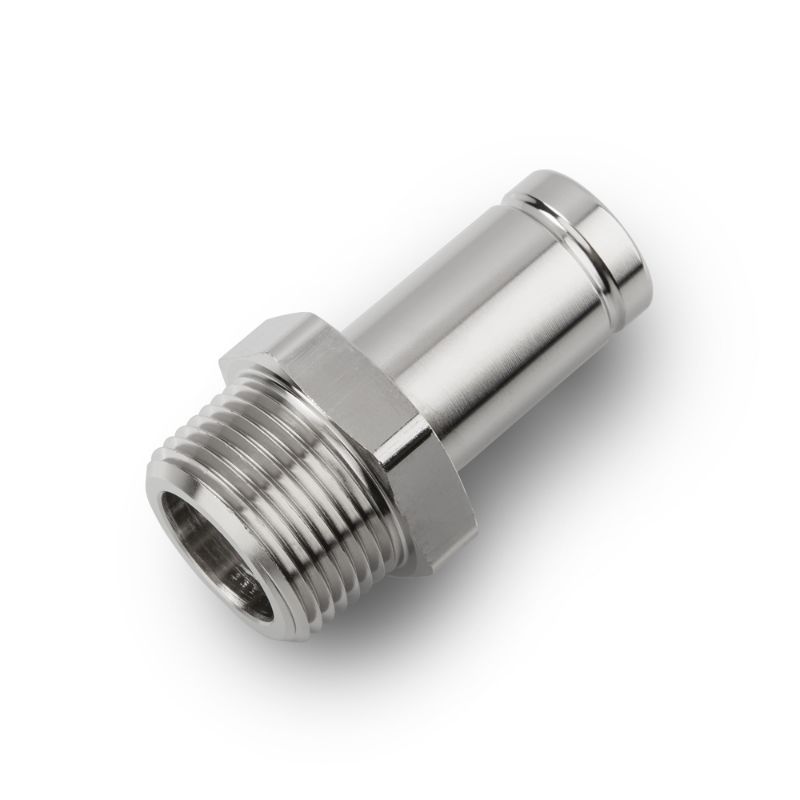

Parker 6621 17 22 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

AFP Availability:	Quote Required
Partner Available:	5 In Stock

Brand Parker

Part No. 6621 17 22

$50.59/each

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	1.019 kg
Brand	Parker	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Industry	General Industrial	Specifications Met	EN 755.8
Connection 1 Type	Pipe	Configuration	Pipe Stem to Port
Connection 2 Size	1/2 inch	For Fluid Type	Industrial Gas
Assembly Time	0.17 Hours	Division	Low Pressure Connectors Europe Division
Vacuum Pressure Rating	0.03 inch-Hg	Connection 1 Size	16.5 mm
Connection 2 Type	Male NPT	Maximum Operating Temperature	85 °C
Technology	Fluid & Gas Handling	Quantity per Box	1
Shape	Straight	Product Type	Compressed Air Piping
Application	Industrial Gas	Product Style	Stud Fitting
Division	Fluid System Connectors Division	Body Material	Treated Aluminum
Minimum Operating Temperature	-20 °C	Pipe O.D. (mm)	16.5
Pipe O.D. (inch)	1/2	Silicone Free	Yes
Connection Thread Size (inch)	1/2	Product Style	Male NPT
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
