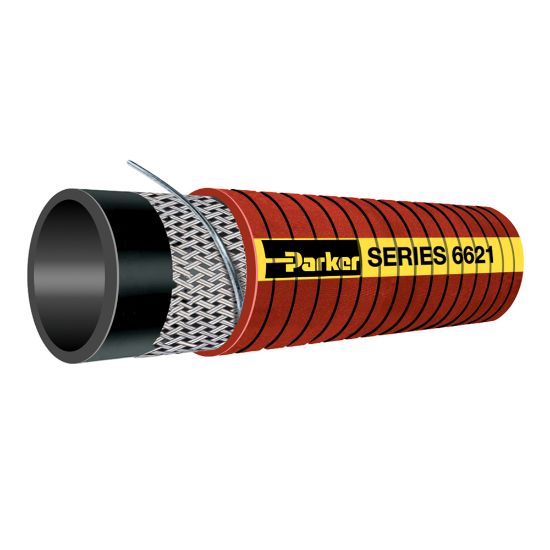

Parker 6621-1000130 - Silicone Greek Corrugated High Temperature Wire Reinforced Coolant Hose, Series 6621

Silicone Greek Corrugated High Temperature Wire Reinforced Coolant Hose is for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment to 75 psi and 392°F, Series 6621

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6621-1000130

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Media	Water
Package Type	Coil	Inside Diameter	1 inch
Weight	0.14 kg	Cover Color	Red
Outside Diameter	35 mm	Maximum Operating Pressure	75 psi
Minimum Bend Radius	50 mm	Application	Silicone Coolant
Specifications Met	SAE J20R1, Class A	Vacuum Pressure Rating	17.7 Inch-Hg
Maximum Operating Temperature	200 °C	Minimum Operating Temperature	-60 °C
Design Factor	3:1	Cover Material	Silicone
Cover Structure	Glossy	Minimum Burst Pressure	225 psi
Hose Inner Tube Material	Silicone	Hose Reinforcement Material	Multiple Plies of High Temperature Textile with Wire Helix
Hose I.D. (inch)	1	Standard Pack Qty (ft)	130
Minimum Burst Pressure (psi)	225

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
