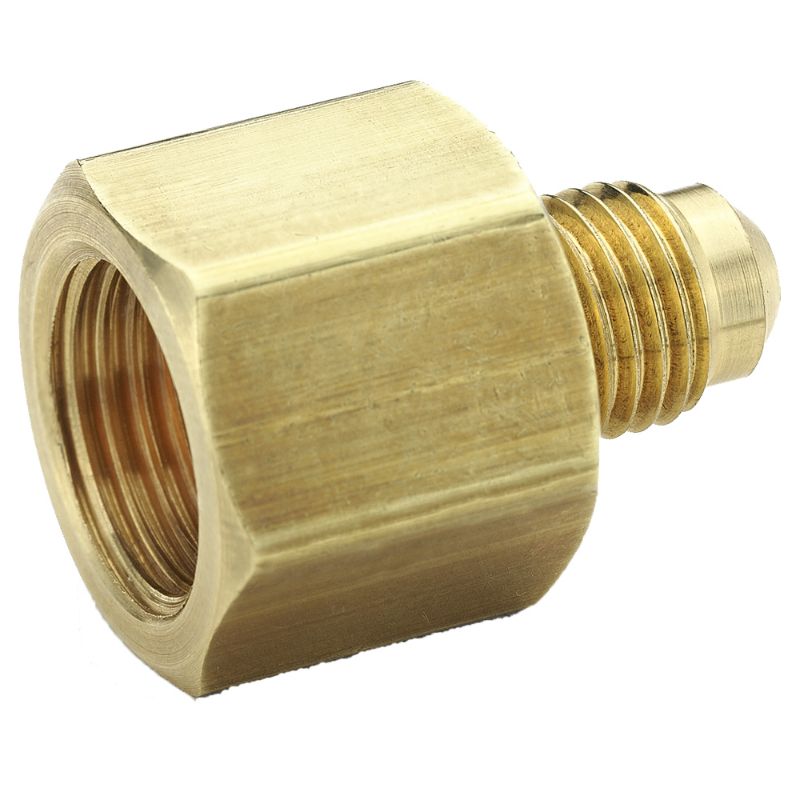

Parker 661FHD-4-8 - Brass 45° Flare Fittings

Name: Parker 661FHD-4-8 - Brass 45° Flare Fittings
SKU: 661FHD-4-8
Price: 16.78 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

10 In Stock

Jacksonville, FL

Partner Available:

19 In Stock

Brand Parker

Part No. 661FHD-4-8

$16.78

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid System Connectors Division	Body Material	Brass
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
O-Ring Material	Fluorocarbon	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-53 °C	Application	Pumps, Gas Grills, Coffee Makers, Adapters
Specifications Met	SAE J512, SAE J513	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Nut Material	Brass	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Maximum Operating Pressure	96.5 bar	Shape	Connector
Connection 1 Type	Flare	Connection 1 Thread Size	7/16-20 inch
Connection 2 Thread Size	3/4-16 inch	Connection 1 Tube Outside Diameter	1/4 inch
Connection 2 Tube Outside Diameter	1/2 inch	Connection 3 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 3 Thread Size	NA
Product Style	Male Flare to Female Flare	Connection 2 Type	Flare Nut
