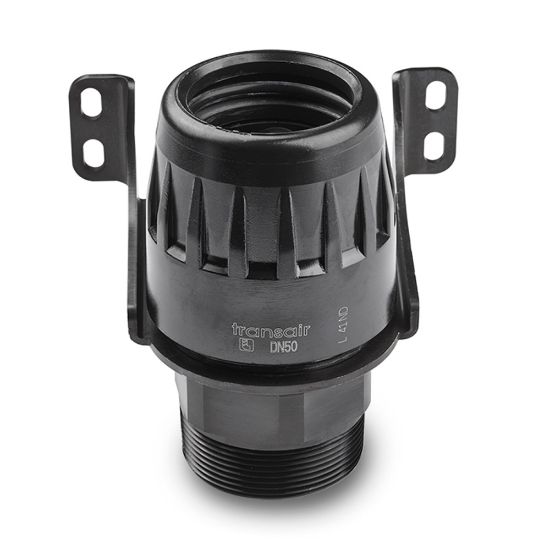

Parker 6615 50 50 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 6615 50 50

$237.32

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Product Type	Compressed Air Piping	Shape	Straight
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-4 °F
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Fluid System Connectors Division	Division	Low Pressure Connectors Europe Division
Application	Compressed Air	Body Material	Treated Aluminum
Specifications Met	EN 755.2	Vacuum Pressure Rating	1 mbar
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	For Fluid Type	Air
Connection 1 Type	Pipe	Quantity per Box	1
Connection 2 Size	1-1/2 inch	Weight	2.9 lb
Configuration	Pipe to Port	Connection 1 Size	2 inch
Connection 2 Type	Male NPT	Assembly Time	0.2 Hours
Product Style	Stud Fitting with Fixing Plate	Pipe O.D. (mm)	50
Pipe O.D. (inch)	2	Silicone Free	Yes
Connection Thread Size (inch)	1-1/2	Product Style	Male NPT
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
