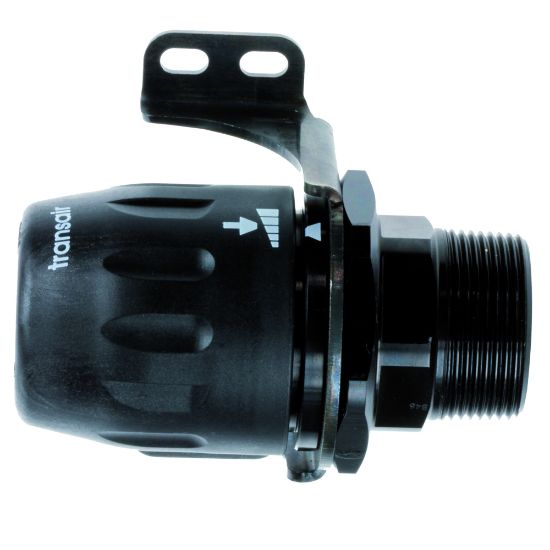

Parker 6615 50 48 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6615 50 48

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Transair	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Shape	Straight
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Division	Low Pressure Connectors Europe Division
Application	Industrial Gas	Technology	Pneumatics
Body Material	Treated Aluminum	Specifications Met	ASME B31.1 - 31.9
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	232 psi
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Quantity per Box	1	Assembly Time	0.17 Hours
Configuration	Pipe to Port	Connection 1 Size	2 inch
Connection 2 Size	R 2 inch	Connection 2 Type	Male BSPT
Weight	0.801 kg	Product Style	Stud Fitting with Fixing Plate
Pipe O.D. (mm)	50	Pipe O.D. (inch)	2
Connection Thread Size (inch)	2	Silicone Free	Yes
Product Style	Male BSPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A
