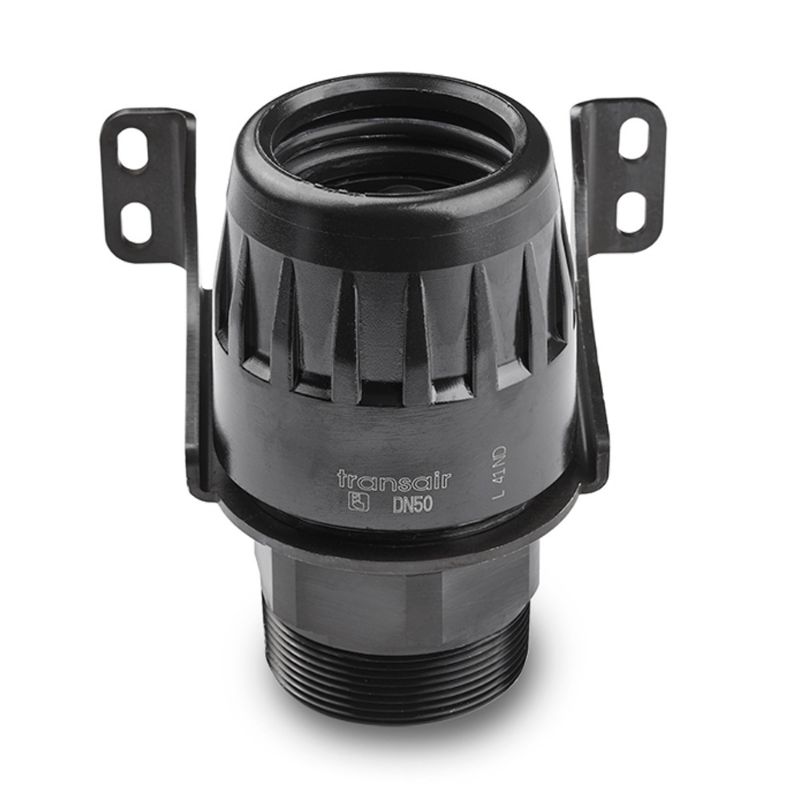

Parker 6615 50 44 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6615 50 44

$237.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Stud Fitting with Fixing Plate
Minimum Operating Temperature	-4 °F	Division	Fluid System Connectors Division
Body Material	Treated Aluminum	Connection 1 Size	2 inch
Connection 2 Type	Male NPT	Connection 1 Type	Pipe
Specifications Met	ASME B31.1 - 31.9	Application	Inert Gas
Shape	Straight	Product Type	Compressed Air Piping
Vacuum Pressure Rating	1 mbar	Industry	General Industrial
Weight	2.87 lb	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Brand	Parker	Quantity per Box	1
Technology	Pneumatics	Maximum Operating Temperature	85 °C
Division	Low Pressure Connectors Europe Division	Connection 2 Size	2 inch
Configuration	Pipe to Port	Assembly Time	0.2 Hours
For Fluid Type	Air	Pipe O.D. (mm)	50
Pipe O.D. (inch)	2	Connection Thread Size (inch)	2
Silicone Free	Yes	Product Style	Male NPT
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
