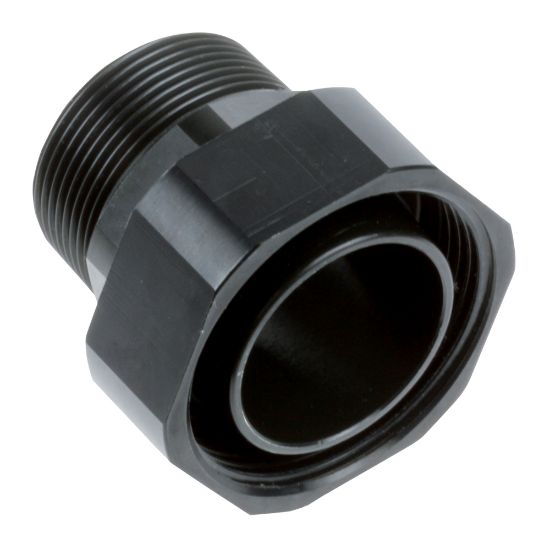

Parker 6611 40 48 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6611 40 48

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Shape	Straight
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Low Pressure Connectors Europe Division	Application	Vacuum
Body Material	Treated Aluminum	Specifications Met	EN 755.8
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	232 psi
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Quantity per Box	1	Connection 1 Size	40 mm
Assembly Time	0.17 Hours	Connection 2 Size	R 2 inch
Connection 2 Type	Male BSPT	Weight	1.366 lb
Configuration	Port to Swivel Port	Product Style	Stud Fitting with Nut
Pipe O.D. (mm)	40	Pipe O.D. (inch)	1-1/2
Connection Thread Size (inch)	2	Silicone Free	Yes
Product Style	Male BSPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials
